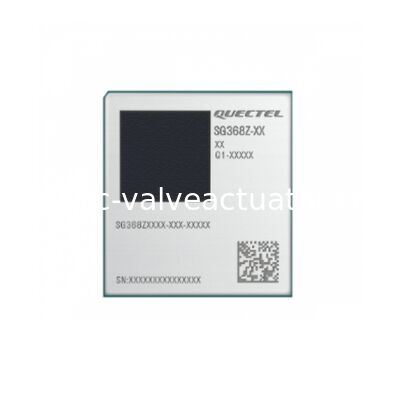

Quectel SG368Z System-on-Module | Edge AI Processor with Wi-Fi 5 & BT 4.2

The Quectel SG368Z series is a new generation of smart modules based on the Rockchip RK3568B2/RK3568J IoT chipset. The module features a high-performance quad-core 64-bit ARM Cortex-A55 CPU, an ARM Mali-G52 GPU, an 8MP ISP with HDR support, and a 1 TOPS NPU. It integrates LPDDR4 and eMMC memory and supports Wi-Fi 5 and Bluetooth 4.2 connectivity, making it an ideal choice for industrial applications requiring high levels of automation, as well as consumer applications that demand high data rates and multimedia capabilities.

The module incorporates a rich set of peripheral interfaces, including video output interfaces supporting triple-display setups (HDMI, LVDS, RGB, MIPI, eDP), dual Gigabit Ethernet ports, SATA (multiplexed with other interfaces), multiple industrial-grade UARTs, four USB 2.0/3.0 ports, and two PCIe interfaces. Equipped with a 4K video decoder and a 1 TOPS NPU, the module can natively execute deep-learning algorithms, serving as a powerful solution for smart terminals and industrial edge computing. It supports various operating systems—such as Linux, Android, OpenWrt, and Debian*—as well as frameworks like Qt. Furthermore, it is compatible with Quectel's LTE Cat 1/4, 5G, Wi-Fi 6, and GNSS modules, making it an excellent fit for a wide range of M2M scenarios, including IoT gateways, smart commercial displays, industrial terminals, intelligent medical systems, automotive center consoles, and in-vehicle Network Video Recorders (NVRs).

• Quad-core 64-bit ARM Cortex-A55 CPU
• ARM Mali-G52 GPU
• 8M ISP with HDR support
• 1 TOPS NPU
• 4K @ 60fps video decoding
• 1080P @ 60fps video encoding
• PCIe 3.0 / USB 3.0 / SATA 3.0 / SD 3.0 / RGMII
• HDMI 2.0 / MIPI DSI 1.2 / eDP 1.3 / LVDS / RGB
• MIPI CSI 1.2 camera interface
• IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
• Bluetooth 4.2

The Quectel SG368Z is a system-on-module built for edge devices that need local intelligence, rich multimedia processing, and flexible short-range connectivity. Based on the Rockchip RK3568 platform, it integrates a capable ARM processor, graphics engine, image signal processing, and an NPU for lightweight AI inference, making it suitable for applications where decisions must be made closer to the device rather than entirely in the cloud.

This module is designed for products that combine visual interaction, media playback, and intelligent recognition. With support for high-resolution video decoding and multi-screen display, it can serve smart commercial displays, industrial HMIs, digital signage, self-service kiosks, in-vehicle entertainment systems, and edge vision devices. Its image processing capability further enables camera-based applications such as object detection, people counting, safety monitoring, and automated inspection.

Unlike basic wireless modules, the SG368Z functions as a complete computing core. It includes embedded memory, multiple display interfaces, camera interfaces, USB, PCIe, Ethernet, serial ports, and other peripheral connections, allowing developers to build feature-rich terminals without assembling a complex mainboard from scratch. Wi-Fi 5 and Bluetooth 4.2 provide reliable local network access and convenient device pairing, while additional cellular or positioning modules can be paired when wider-area connectivity is required.

The SG368Z supports multiple operating systems, including Linux and Android, giving product teams flexibility in software development, user interface design, and long-term maintenance. Its compact LGA packaging helps reduce board space and simplifies integration into industrial and consumer devices that demand stable performance in real-world environments.

• IoT Gateways
• Smart Commercial Displays
• Industrial Terminals
• Intelligent Medical Systems
• Automotive Center Consoles
• In-Vehicle NVRs
• Industrial HMIs
• Digital Signage
• Self-Service Kiosks
• Edge Vision Devices
