Hua Heng HY-MVK5200E Electronic Vibration Switch | Industrial Vibration Monitoring Sensor

Name: Hua Heng HY-MVK5200E Electronic Vibration Switch | Industrial Vibration Monitoring Sensor
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: HY-MVK5200E
Price: 210.00 USD
Availability: InStock

Brand Name:	Hua Heng
Model Number:	HY-MVK5200E
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Packaging Details:

New original box

Highlight:

Hua Heng electronic vibration switch

industrial vibration monitoring sensor

electronic control relay with warranty

Product Description

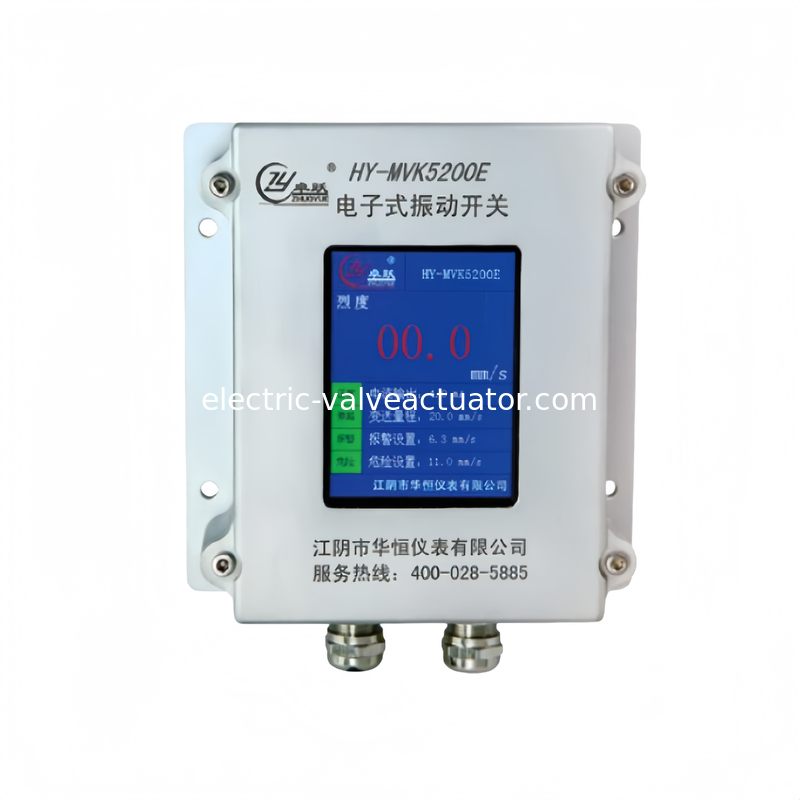

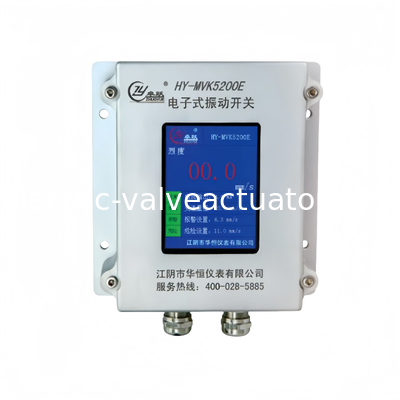

Hua Heng HY-MVK5200E Electronic Vibration Switch

Industrial Vibration Monitoring Sensor for continuous monitoring and measurement of bearing vibration in various rotating machinery.

Product Overview

The HY-MVK5200E electronic vibration switch continuously monitors and measures bearing vibration (absolute vibration) of rotating machinery, enabling easy analysis and maintenance of machine working conditions. Equipped with current output for connecting external recorders and microcomputers.

Technical Specifications

Shell material: Aluminum alloy with IP56 protection level

Measurement range: 0-500 μm (P-P value)

Measurement accuracy: Level 0.5 linear error ≤±0.5% (full scale)

Output mode: Current output: 4-20mA (load ≤1KΩ)

Secondary switch output: DC30V/3A or AC250V/5A

Operating environment: -40~65℃ Relative humidity: ≤95%

Power supply voltage: DC24V 50mA, maximum value 100 mA

Installation method: Fixed screw installation

Dimensions: 118mm (height) x 66mm (width) x 60mm (depth)

Key Features

Advanced industrial monitoring solution for reliable vibration detection

Equipment protection for mechanical systems

Identifies abnormal machine conditions for timely preventive measures

Reduces potential risks and improves maintenance efficiency

Stable operation in complex working environments

Robust construction for long-term industrial use

Applications

Widely used in vibration protection of rotating machinery and reciprocating machines, including:

Fans	Air-cooled islands	Centrifuges
Compressors	Pumps	Coal mills
Motors	Turbines	Industrial machinery

Benefits

The HY-MVK5200E supports early identification of abnormal vibration behavior, helping maintenance teams improve fault diagnosis, optimize inspection processes, and reduce unexpected downtime. It extends equipment service life, improves operational efficiency, and reduces unnecessary maintenance costs through continuous vibration monitoring.
