Hua Heng HY-V402 Intelligent Vibration Temperature Monitoring Protection Device | Industrial Machinery Safety Monitor

Name: Hua Heng HY-V402 Intelligent Vibration Temperature Monitoring Protection Device | Industrial Machinery Safety Monitor
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: HY-V402
Price: 210.00 USD
Availability: InStock

Brand Name:	Hua Heng
Model Number:	HY-V402
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Packaging Details:

New original box

Highlight:

Hua Heng HY-V402 vibration monitoring device

industrial machinery safety monitor

electronic control relay with temperature monitoring

Product Description

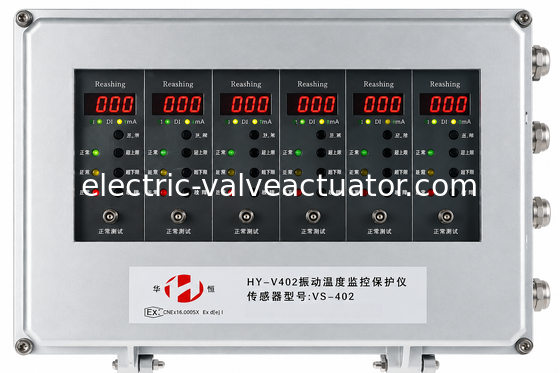

Hua Heng HY-V402 Intelligent Vibration Temperature Monitoring Protection Device

Industrial Machinery Safety Monitor

The HY-V402 intelligent vibration and temperature monitoring protection device is a high-performance, integrated monitoring system designed for continuous monitoring of four-point bearing vibration and two-point bearing temperature signals in rotating machinery.

Technical Specifications

Measurement Range	Amplitude: 0～500μm (peak-to-peak) Intensity: 0～50.0mm/s (true RMS) Temperature: -100 to 400.0°C
Input Signal	Compatible with VS-402 vibration-temperature combined sensor
Measurement Accuracy	Class 0.5, linear error ≤±0.5%
Display Method	LED or LCD display
Output Signals	Current output: 4~20mA (load resistance ≤850Ω) Switching output: DC 27V/2A or AC 250V/5A
Operating Environment	-40°C to 65°C, relative humidity ≤95% (non-condensing)
Power Supply	AC 85V to 265V or DC 100V to 360V
Installation & Dimensions	Wall-mounted installation External dimensions: 312mm × 250mm × 100mm Installation dimensions: 320mm × 155mm Fixed holes: 4×Φ4mm

Key Features

Aluminum alloy waterproof enclosure with IP54 protection rating
Continuous monitoring of vibration and temperature signals
Optional VS-402 vibration and temperature combined sensor
Supports user analysis and maintenance of machine conditions
Designed for demanding industrial environments

Applications & Benefits

The HY-V402 provides reliable machinery condition supervision and operational protection for industries including power generation, manufacturing, petrochemical processing, and other sectors relying on rotating or critical mechanical systems.

This intelligent monitoring device enables early identification of abnormal mechanical behavior, supporting timely maintenance decisions and helping prevent potential failures that could affect production continuity. It facilitates predictive maintenance strategies, helping users move beyond traditional reactive repairs to adopt a more proactive approach to equipment management.

By combining vibration and temperature monitoring functions, the HY-V402 helps maintain equipment stability, improve maintenance efficiency, reduce risks associated with unexpected machinery issues, and extend the service life of valuable machinery in complex industrial environments.
