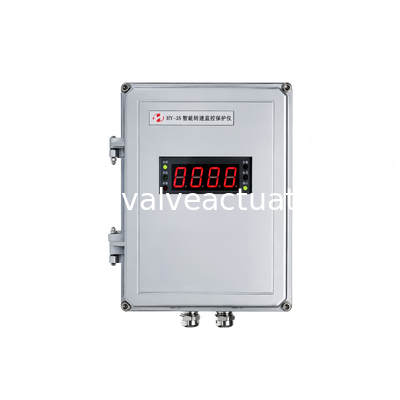

Hua Heng HY-5S Intelligent RPM Safety Monitor | Digital Rotational Speed Protection System

Name: Hua Heng HY-5S Intelligent RPM Safety Monitor | Digital Rotational Speed Protection System
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: HY-5S
Price: 210.00 USD
Availability: InStock

Brand Name:	Hua Heng
Model Number:	HY-5S
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Highlight:

Hua Heng HY-5S RPM monitor

digital rotational speed protection system

electronic control relay with safety monitor

Product Description

Hua Heng HY-5S Intelligent RPM Safety Monitor | Digital Rotational Speed Protection System

The Hua Heng HY-5S Intelligent RPM Safety Monitor is an advanced industrial protection solution designed to provide reliable rotational speed monitoring and enhance the safety of critical mechanical systems. This digital monitoring device helps operators maintain stable operation and improve overall system reliability in demanding industrial environments.

Technical Specifications

Measurement & Input

Measurement range: 0-9999 rpm
Input signal: RS-1 (passive) speed sensor
RS-2 (active) speed sensor
RS-2F anti-rotation speed sensor
CWY-DO - Φ8 eddy current sensor

Performance & Display

Gear disc teeth: Set arbitrarily according to gear disc
Measurement accuracy: ±1 revolution
Display mode: 4-digit or 5-digit LED or LCD display

Output Signals

4-20mA (load resistance ≤850Ω)
PULSE signal output with waveform analysis
RS485 communication: Modbus RTU protocol
Switching output: DC27V/2A or AC250V/5A

Environmental & Power

Operating environment: -40℃ to 65℃
Relative humidity: ≤95% (non-condensing)
Power supply: AC 85V-265V or DC 100V-360V

Installation Dimensions

Installation Type	Dimensions	Hole/Cutout Size
Disk Installation	160mm * 92mm * 210mm	152+0.5mm * 76+0.5mm
Disk Mounted (Short Chassis)	160mm * 92mm * 110mm	152+0.5mm * 76+0.5mm
Wall Mounted Installation	290mm * 210mm * 75mm	110mm * 260mm (4*4mm fixed holes)

Advanced Features

The instrument utilizes advanced high-performance embedded chips and digital processing technology, enhancing measurement accuracy while simplifying operation. Functional parameters can be easily set through panel buttons, facilitating on-site installation, debugging, and maintenance.

Safety & Protection Features

Power-on and power-off detection functions
Automatic cut-off of alarm and shutdown output circuits
Configurable shutdown signal delay output (0-99 seconds)
Effective suppression of false alarms
Suitable for long-term online monitoring
No power conversion device required
Compatible with worldwide power supplies

Industrial Applications

The HY-5S Intelligent RPM Safety Monitor supports various industrial systems including power equipment, mechanical installations, and automated production facilities. Its intelligent monitoring capability helps bridge the gap between traditional equipment operation and modern intelligent management by providing valuable information about rotational conditions.

With the increasing development of intelligent manufacturing and industrial automation, the HY-5S enables operators to better understand equipment performance, improve decision-making efficiency, and develop more proactive maintenance strategies. This contributes to longer equipment service life, improved operational stability, and enhanced overall reliability of industrial processes.
