Fluke TiS65 PRO Thermal Imaging Camera | Professional Infrared Inspection Tool for Industrial Temperature Analysis

Name: Fluke TiS65 PRO Thermal Imaging Camera | Professional Infrared Inspection Tool for Industrial Temperature Analysis
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: TiS65 PRO
Price: 210.00 USD
Availability: InStock

Brand Name:	Fluke
Model Number:	TiS65 PRO
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Packaging Details:

New original box

Product Description

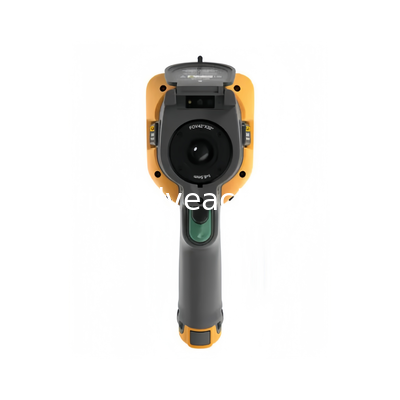

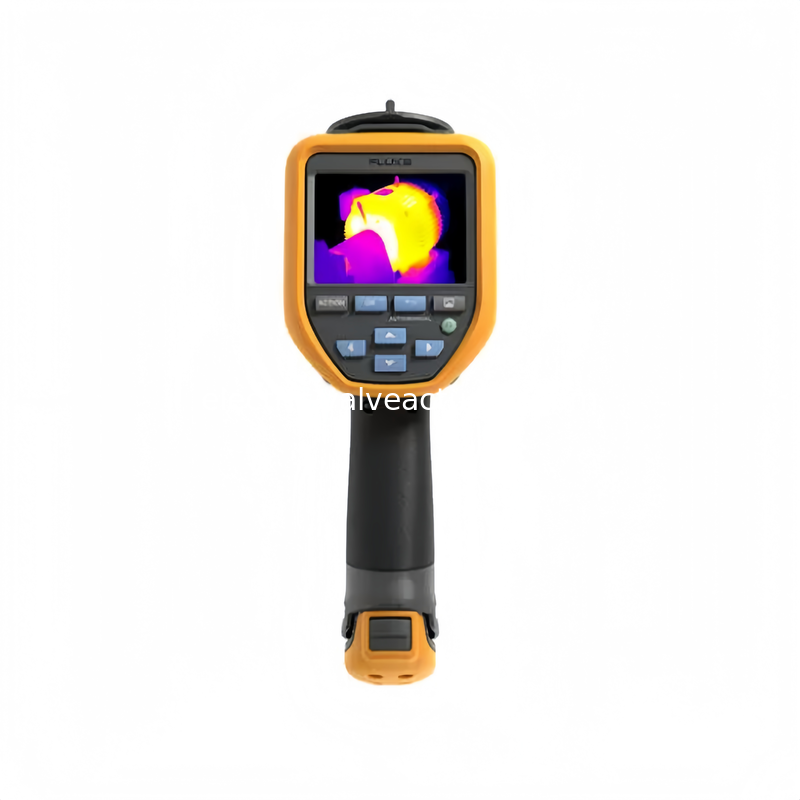

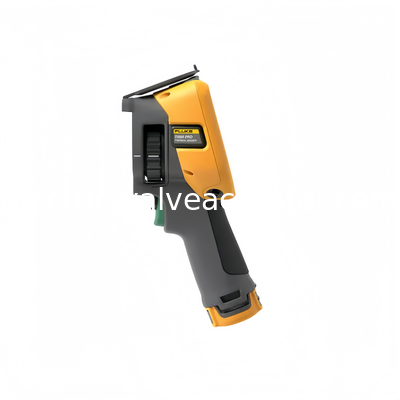

Fluke TiS65 PRO Thermal Imaging Camera

Professional Infrared Inspection Tool

Advanced thermal imaging camera designed for industrial temperature analysis and inspection applications.

Core Imaging Specifications

Infrared Resolution	320 x 240 (76,800 pixels)
SuperResolution	640 x 480
Detector Type	Uncooled infrared focal plane array
Spectral Range	8-14 µm
Field of View (FOV)	42° x 32° or 25° x 19°
IFOV	42°: 2.29 mRad \| 25°: 1.36 mRad
Minimum Focus Distance	42°: 0.1 m \| 25°: 0.15 m
Focus System	Manual focus + Focus-free with Agile Focus
Thermal Sensitivity	≤ 40 mK (0.04°C)
Image Frame Rate	30 Hz

Temperature Measurement

Temperature Range	-20 to 600°C
Measurement Ranges	-20°C to 150°C \| 0°C to 600°C
Accuracy	±2°C or 2% of reading (whichever is greater) at 18-28°C ambient
Temperature Compensation	Emissivity, ambient temperature, measurement distance, and transmission corrections
Spot Temperature	Center point (fixed)

Advanced Features

IR-Fusion technology with continuous blending (0% to 100% in 1% increments)
Picture-in-Picture (PIP) display mode
Auto-capture of hot/cold spots with automatic tracking
User-definable markers: 5 points, 5 lines, 5 areas
Three-phase maximum temperature difference calculation
10 standard color palettes including Grayscale, Ironbow, High Contrast, and more
50 preset measurement templates
Audio and color alarms for temperature thresholds

Connectivity & Software

Wireless connectivity for direct transmission to mobile phones or PCs
Fluke Connect Express software for analysis, reporting, and inspection management
Asset tagging via QR code or barcode scanning
Type-C port for charging and data transfer

Data Storage & Capture

Storage	Standard 64GB SD card (expandable to 1 TB)
Image Format	JPEG with temperature data
Video Recording	MP4 format
Annotation Options	Voice (via Bluetooth), text, IR-Photo Notes, severity levels
Interval Imaging	Automatic capture at user-defined intervals

Display & Design

Display	3.5" (8.9 cm diagonal) touchscreen
Touchscreen Resolution	640 x 480 LCD
Design	Ergonomic for one-handed use
Built-in Digital Camera	13 megapixels visible light

Battery & Power

Battery Type	Field-replaceable rechargeable Li-ion
Battery Life	> 5 hours (varies with usage)
Charging Time	< 4 hours to full charge
Charging Methods	Ti SBC3B dual-bay charger or Type-C port
External Power	AC operation via included 15 VDC, 2 A adapter

General Specifications

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C (without battery)
Relative Humidity	10% to 95% (non-condensing)
Drop Resistance	Withstands 2 m drop
Ingress Protection	IP52
Laser	Class 2, 650 nm, < 1 mW
LED Light	Flashlight function
Dimensions (H x W x L)	26.7 cm x 10.1 cm x 14.5 cm
Weight (with battery)	950 g

Compliance & Support

Safety: IEC 61010-1 Pollution Degree 2
EMC: IEC 61326-1, CISPR 11 Group 1 Class A
RoHS3 Directive Compliant
Supported Languages: Simplified Chinese, English
Warranty: 2 years
Recommended Calibration Interval: 2 years

Standard Package Contents

Main unit, 2 batteries, dual-bay charging dock, soft case, hard case, SD card, charging adapter
