Fluke Networks MicroScanner™ PoE Cable Tester | Network Cable Verifier with PoE Detection & Length Measurement

Name: Fluke Networks MicroScanner™ PoE Cable Tester | Network Cable Verifier with PoE Detection & Length Measurement
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: Networks MicroScanner™ PoE
Price: 210.00 USD
Availability: InStock

Brand Name:	Fluke
Model Number:	Networks MicroScanner™ PoE
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Packaging Details:

New original box

Product Description

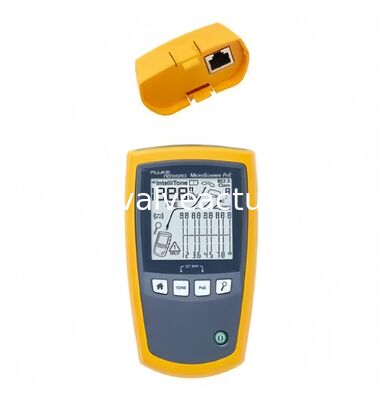

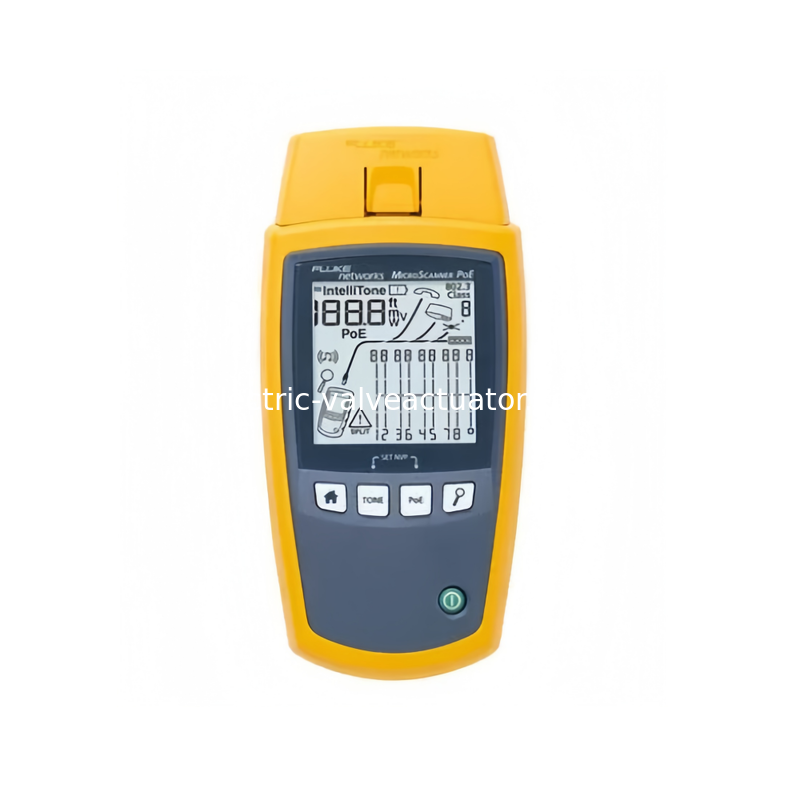

Fluke Networks MicroScanner™ PoE Cable Tester

Professional network cable verifier with Power over Ethernet (PoE) detection and precise length measurement capabilities.

Environmental Specifications

Operating Temperature	32 °F - 113 °F (0 °C - 45 °C)
Storage Temperature	-4 °F - +140 °F (-20 °C - +60 °C)
Operating Humidity	90% (50 °F - 95 °F / 10 °C - 35 °C) 75% (95 °F - 113 °F / 35 °C - 45 °C)
Shock & Vibration	Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test, with or without wiremap adapter
Safety	IEC 61010-1 Edition 3
Altitude	4000 m; Storage: 12,000 m
EMC	IEC 61326-1

General Specifications

Test Connectors	Shielded 8-pin modular jack; accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs
Power	Battery type: 2 AA alkaline batteries Battery life: 20 hours (typical use) Compatible with: 2 AA lithium photo batteries, NiMH, NiCd
Dimensions & Weight	3 in x 6.4 in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) Weight: 10.6 oz (300 g)
Display	Monochrome backlit LCD

Test Modes

Cable Test: Measures length, verifies wiremap, identifies Remote ID locators, and detects Ethernet ports
Tone Generation: Generates IntelliTone™ and standard analog audio signals
PoE Detection: Requests and detects PoE devices compatible with 802.3af, at, bt, and UPOE (Cisco Universal Power Over Ethernet)

Performance Specifications

Cable Types Tested	Twisted pair: UTP, FTP, SSTP
Length Measurement	Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Accuracy: ± 4% or 0.6 m (2 ft), whichever is greater
Wiremap Test	Detects wire faults, shorts, miswires, split pairs, and up to seven remote adapter IDs
Ethernet Port Detection	Detects nominal speed of 802.3 Ethernet ports; supports 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps rates
Tone Generator	Supports tone generation and wiremapping with Fluke Networks digital IntelliTone™ probes. Generates four tones compatible with standard analog probes

NVP uncertainty is an additional error factor. User-settable twisted pair NVP value calibration available.
