Fluke Networks LinkIQ™ Cable + Network Tester | Ethernet Testing Tool with Switch Diagnostics & PoE Verification

Name: Fluke Networks LinkIQ™ Cable + Network Tester | Ethernet Testing Tool with Switch Diagnostics & PoE Verification
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: Networks LinkIQ™
Price: 210.00 USD
Availability: InStock

Brand Name:	Fluke
Model Number:	Networks LinkIQ™
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Packaging Details:

New original box

Product Description

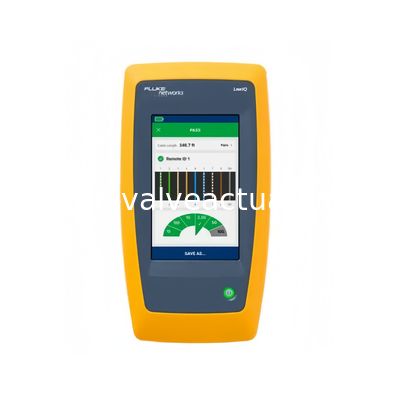

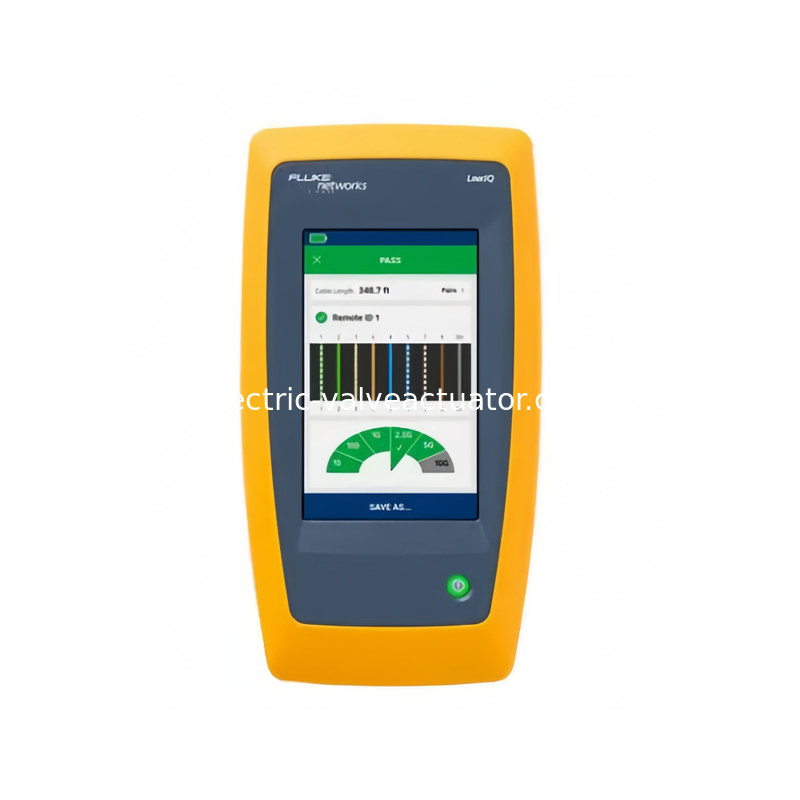

Fluke Networks LinkIQ™ Cable + Network Tester

Product Overview

Professional Ethernet testing tool with comprehensive switch diagnostics and Power over Ethernet (PoE) verification capabilities for network infrastructure testing and troubleshooting.

Physical Specifications

Weight: 1 lb 6 oz (624 g)

Dimensions: 8.5 in x 4.5 in

Display: 800 x 480 capacitive multi-touch color screen

User Interface: English (Software version v1.0)

Power & Battery

Battery Type: Li-ion, 3.6 V, 6400 mAh

Runtime: 8 hours (typical)

Charging Time: 4.5 hours

Host Interface: USB Type-C

Environmental Specifications

Operating Temperature: 0 °C to 45 °C

Storage Temperature: -10 °C to +60 °C

Operating Altitude: 4000 m (3200 m when using AC power adapter)

Vibration: Random vibration, 2 g, 5 Hz-500 Hz

Drop Test: 1-meter drop, 6 sides

Active Network Diagnostics

Function	Description
Diagnostic Protocols	Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulse (FLP)
Neighbor Device Diagnostic Info	Switch name Port number VLAN name Nominal data rate Nominal duplex mode
PoE Compatibility	IEEE 802.3af/at/bt (Software version v1.0) Hardware negotiation based on signature resistance Software negotiation based on LLDP/CDP
PoE Diagnostic Info	Nominal power class (0 to 8) Nominal available power Powered wire pairs Single-signature and dual-signature diagnostic info
PoE Measurements	Load voltage (V) Load power (W) Port indicator flashing

Cable Test Specifications

Function	Description
Test Port	Shielded 8-pin modular jack; supports 8-pin modular (RJ45) plugs
AutoTest	10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wiremap only Test speed: 6 seconds for lengths < 70 meters
Cable Type	Balanced twisted pair Unshielded twisted pair (UTP) Shielded twisted pair (STP) 2-pair and/or 4-pair
Wiremap Only	Records wiremap Length of each pair Diagnoses split pairs User-selectable T568A or T568B standards User-selectable crossover settings Test speed: 1 second for lengths < 120 meters
Length (Max)	305 meters (1000 feet)
Tone Generator	Generates digital tone signals compatible with Fluke Networks IntelliTone probes Generates analog tone signals compatible with standard analog probes
Remote ID Locator	Identifies up to 7 unique ports or outlets using remote ID terminators
