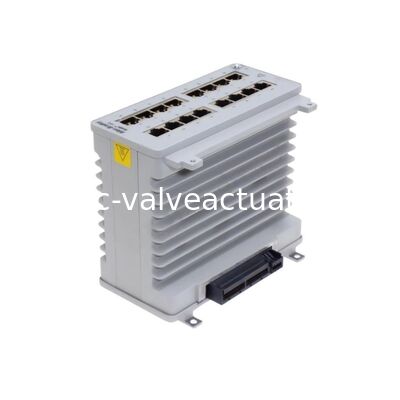

Allen Bradley 1783-MMX16E Stratix 5800 Ethernet Expansion Module for Industrial Networking and Automation Systems

As industrial networks grow in complexity, the ability to scale connectivity without adding unnecessary hardware becomes increasingly important. The Allen-Bradley 1783-MMX16E Stratix 5800 Ethernet Expansion Module provides a practical way to extend the communication capacity of Stratix 5800 managed switches, helping industrial systems adapt to changing production requirements while maintaining a clean, integrated network architecture.

This expansion module is designed to work within the modular Stratix 5800 platform, allowing users to increase Ethernet connectivity as automation systems expand. Instead of deploying additional standalone switches, engineers can enhance an existing Stratix 5800 switch with the required connectivity resources. This approach helps reduce panel space usage, simplifies wiring, and supports a more organized industrial network design.

The Stratix 5800 platform is jointly developed by Rockwell Automation and Cisco, combining industrial automation expertise with advanced networking technology. It is built around a Cisco IOS-XE operating system, which enables IT and OT teams to manage industrial networks using familiar tools and practices. The 1783-MMX16E expansion module extends this capability by adding additional Ethernet ports, making it easier to connect controllers, HMIs, drives, sensors, vision systems, and other industrial devices to a high-performance managed network.

Because the Stratix 5800 series supports managed switching and routing functions, expansion modules benefit from the same advanced network capabilities as the base switch. Network segmentation, traffic prioritization, diagnostic visibility, and security features help ensure that industrial data flows efficiently and reliably. These capabilities are especially important in environments where control traffic must remain stable even as more devices are added to the network.

One of the main advantages of using an expansion module is flexibility. Industrial facilities often evolve over time, with new machines, production lines, or monitoring systems added as operations expand. The modular design of the Stratix 5800 platform allows network capacity to grow alongside the plant, rather than requiring a complete network redesign. This makes the 1783-MMX16E a strong choice for facilities that value scalability, long-term planning, and reduced lifecycle complexity.

The module also supports deeper integration with the Rockwell Automation ecosystem. Through compatibility with Studio 5000 and FactoryTalk tools, network devices can be monitored and managed alongside controllers and other automation components. This integration helps reduce commissioning time, improves troubleshooting efficiency, and provides operators with clearer visibility into network status without requiring separate management systems.

From a cybersecurity perspective, the Stratix 5800 platform is designed to support industrial security best practices. As more devices connect to the plant network, maintaining controlled access and structured communication becomes essential. Adding connectivity through an expansion module allows new devices to be incorporated into an existing managed network, where segmentation, monitoring, and access controls can be applied consistently.

• Modular scalability: Extend Ethernet connectivity of Stratix 5800 switches without deploying additional standalone hardware.
• Space and wiring efficiency: Reduce panel space usage, simplify wiring, and minimize the need for extra enclosures and power supplies.
• Advanced managed networking: Leverage segmentation, traffic prioritization, diagnostics, and security features of the Stratix 5800 platform.
• Seamless automation integration: Manage and monitor network devices alongside controllers via Studio 5000 and FactoryTalk tools.
• Future-ready design: Support machine-level, cell-level, and plant-wide architectures as operations grow.

The 1783-MMX16E is particularly suitable for manufacturers who already use or plan to use Stratix 5800 switches as part of their industrial Ethernet infrastructure. It helps transform a high-performance switch into a more adaptable connectivity hub, capable of supporting machine-level networks, cell-level architectures, and broader plant-wide communication systems.

For organizations pursuing digital transformation, scalable connectivity is a key enabler. More connected devices mean more operational data, better monitoring, and improved decision-making. The Allen-Bradley 1783-MMX16E Stratix 5800 Ethernet Expansion Module helps bridge the gap between current infrastructure and future growth, enabling industrial networks to expand in a controlled, secure, and manageable way.

In summary, the 1783-MMX16E is not simply an additional set of ports. It is a modular extension that strengthens the scalability and flexibility of the Stratix 5800 platform. For industrial automation systems that require reliable Ethernet connectivity, seamless integration, and long-term adaptability, this expansion module provides a practical path toward a more resilient and future-ready network.
