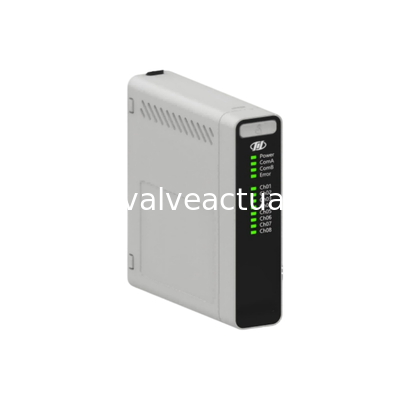

Chuanyi RTD Module | RS485 Modbus RTU Resistance Temperature Detector Module, 1W @24Vdc±10%

The Chuanyi RTD Module is a professional resistance temperature detector acquisition module designed for industrial temperature monitoring and process control applications. Built around the RS485 interface and Modbus RTU protocol, this module enables precise temperature data collection from RTD sensors and delivers it directly to automation systems in a reliable and organized manner. It serves as an efficient bridge between field temperature sensors and control platforms, helping engineers achieve centralized temperature supervision without the complexity of traditional analog wiring.

In many industrial and commercial environments, accurate temperature measurement is essential for maintaining product quality, ensuring equipment safety, and optimizing process efficiency. The Chuanyi RTD Module addresses this need by converting resistance signals from RTD sensors into digital data that can be read and processed by PLCs, HMIs, industrial computers, gateways, SCADA systems, and other automation controllers. This digital approach eliminates the signal degradation and noise susceptibility often associated with long-distance analog transmission, providing cleaner and more dependable temperature readings across the entire system.

The RS485 communication interface is one of the module's core strengths. It supports robust multi-device networking and stable long-distance data transmission, making it well suited for distributed temperature monitoring scenarios where sensors may be spread across large facilities or multiple locations. Combined with the universally recognized Modbus RTU protocol, the module integrates seamlessly into existing automation infrastructures. Engineers can deploy it without overhauling their communication architecture, simply adding it as another node on the RS485 bus and reading temperature values through standard register commands.

RTD sensors are known for their accuracy and stability, making them ideal for applications that demand consistent and repeatable temperature measurements. The Chuanyi RTD Module leverages this advantage across a wide range of sectors:

• Food and beverage processing
• Pharmaceutical manufacturing
• HVAC systems and building automation
• Energy management
• Chemical processing
• Laboratory environments

Whether monitoring cold storage temperatures, supervising pipeline conditions, tracking reactor temperatures, or maintaining climate control in sensitive facilities, the module provides the data foundation needed for informed decision-making and proactive system management.

The module's design reflects a strong focus on industrial practicality. It is built to operate reliably in environments where electrical interference, temperature fluctuations, and continuous runtime are everyday realities. The RS485 interface inherently offers strong anti-interference characteristics, which helps maintain communication integrity even in electrically noisy settings such as near motors, drives, or heavy machinery. This resilience ensures that temperature data remains accessible and accurate when it matters most, reducing the risk of blind spots in critical monitoring processes.

From an installation and maintenance perspective, the Chuanyi RTD Module simplifies system deployment significantly. Instead of running individual analog wires from each sensor back to a central controller, users can daisy-chain multiple modules along a single RS485 bus. This reduces cable costs, minimizes wiring clutter, and makes the overall system architecture easier to understand and maintain. Configuration is straightforward — set the device address, connect the sensors, and start reading data through standard Modbus RTU commands. For maintenance personnel, the modular nature of the system means that individual units can be identified, tested, and replaced with minimal impact on the rest of the network.

The Chuanyi RTD Module also supports scalable system growth. As monitoring needs expand, additional modules can be added to the network without major redesign efforts. This flexibility makes it an attractive choice for projects that may evolve over time, such as phased factory upgrades, expanding facility management systems, or growing production lines.
