SICK AFM60S-SESC262144 Absolute Position Feedback Encoder for Functional Safety Applications

Brand Name:	SICK
Model Number:	KTM-LN55182P
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

OEM

Steps Per Lap (maximum Resolution):

262,144 (18 Bit)

Number Of Turns:

4,096 (12 Bit)

Maximum Resolution (steps Per Turn X Turns):

18 Bit X 12 Bit (262,144 X 4,096)

Error Limit G:

0.05 ° 1)

Repetitive Standard Deviation σ R:

0.002° 2)

Communication Interface:

SSI

Communication Interface Details:

SSI+Sin/Cos

Initialization Time:

2 S 1)

Location Data Generation Time:

<1 µ S

Sine/cosine Period Per Cycle:

1,024

Output Frequency:

≤ 153.6 KHz

Load Resistance:

≥ 120 Ω

Interface Signal Before Differential Generation:

0.5 VSS, ± 20%

Signal Offset Before Differential Generation:

2.5 V ± 10%

Differential Generated Interface Signal:

1 Vss, ± 20 %

Supply Voltage:

4.5... 30 V

Power Waste:

0.7 W (no Load)

Packaging Details:

New original box

Product Description

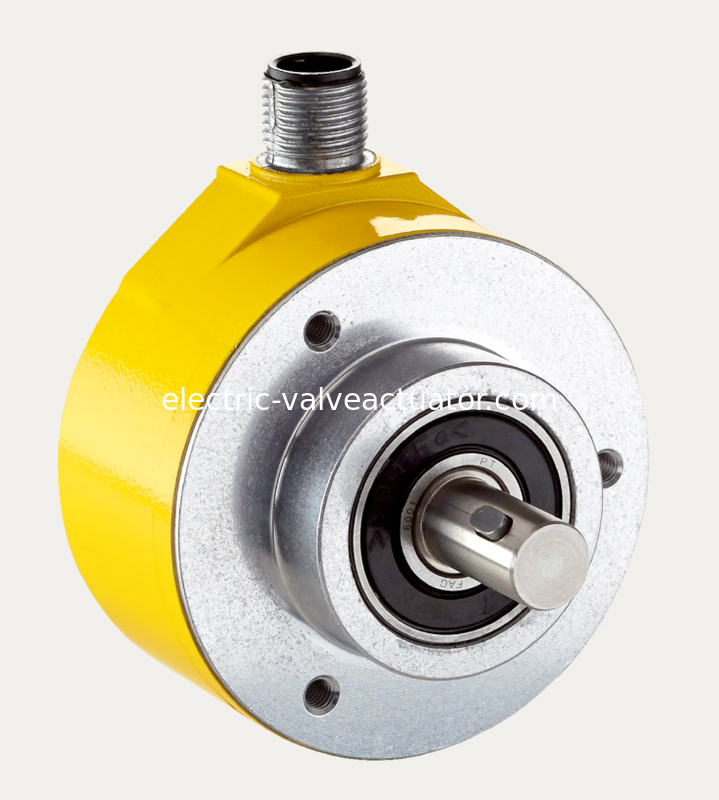

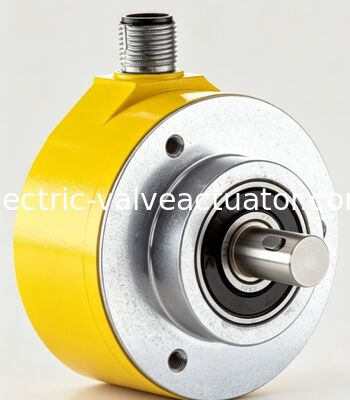

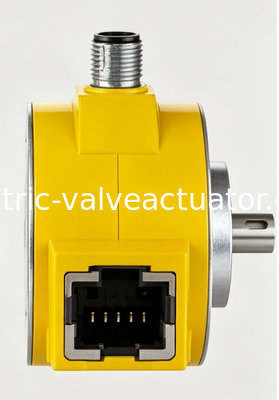

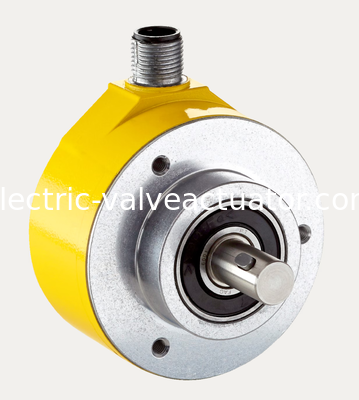

SICK AFM60S-SESC262144 Absolute Position Feedback Encoder for Functional Safety Applications

Product Overview

The SICK AFM60S-SESC262144 is a high-precision absolute position feedback encoder engineered specifically for functional safety applications, combining robust mechanical design with advanced electronic performance to deliver reliable position data in even the most demanding industrial environments.

Safety Certifications

Certified to SIL 3 (IEC 61508) and Performance Level e (ISO 13849-1), this encoder ensures maximum operational safety by enabling accurate, real-time monitoring of rotational position.

Technical Specifications

Single-Turn Resolution:

18-bit (262,144 steps)

Multi-Turn Capability:

12-bit (4,096 revolutions)

Total Resolution:

Exceeding 30 bits

Enclosure Protection:

IP65

Operating Temperature:

-30°C to +85°C

Output Interfaces:

SSI and Sin/Cos signals

Safety Functions

Safe speed monitoring
Safe direction detection
Safe limited travel

Mechanical Design

Featuring a durable clamping flange and solid shaft with feather key connection, the AFM60S-SESC262144 is built to withstand harsh industrial conditions while providing reliable performance.

Applications & Benefits

With low latency, high repeatability, and diagnostic coverage exceeding industry requirements, this encoder enhances machine safety while improving overall equipment effectiveness. Ideal for packaging machinery, material handling systems, robotics, and process automation applications.
