Rotational Magnetic Speed Sensor to measure Bearing Seat vibration

Rotational Magnetic Speed Sensor To Measure Bearing Seat Vibration

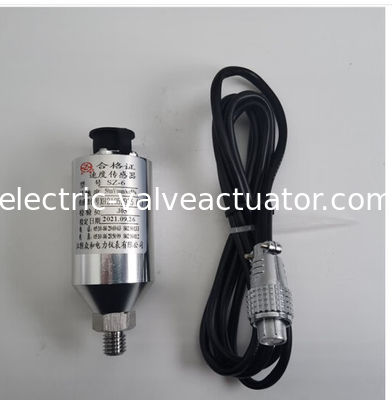

SZ-6 magnetoelectric speed sensor is an inertial sensor that utilizes the principle of magnetoelectric induction to transform vibration signals into voltage signals, which are proportional to the vibration speed value. It can be used to measure the vibration of bearing seats, casings, or structures (absolute vibration relative to inertial space). It is directly installed outside the machine and is extremely convenient for use and maintenance. SZ-6

TECHNICAL PARAMETERS

■ Sensitive:50mV/mm/sec±5%；

Test conditions: (measured at a temperature of 20 ℃± 5 ℃ at 80Hz and a speed of 10mm/s)

■ Amplitude limit: ≤ 2000 μ M (peak to peak);

■ Frequency response: (10-1000) Hz;

■ Maximum acceleration: 10g;

■ Measurement direction: vertical or horizontal; (Universal) SZ-6c type

■ Installation method: Use an M10 in the center hole at the bottom of the sensor × 1 screw fixation;

■ Output wiring method: SZ-6 aviation connector;

SZ-6c type wiring terminal;

■ Environmental conditions: dust proof and moisture-proof

■ Usage temperature: (-30~120) ℃;

■ Relative humidity: ≤ 95% (non condensing);

■ Outline dimensions: SZ-6: Φ thirty-five × 78mm;

SZ-6c: Φ twenty-nine × 55mm;

Order guide

Code :SZ–6； SZ–6c.

SZ-6 type
