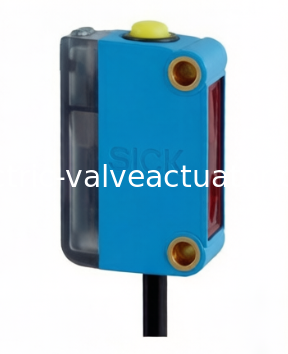

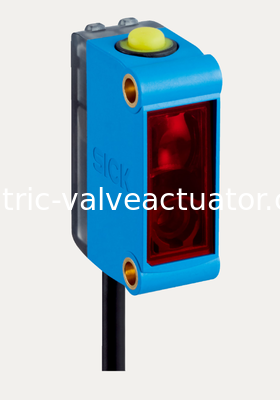

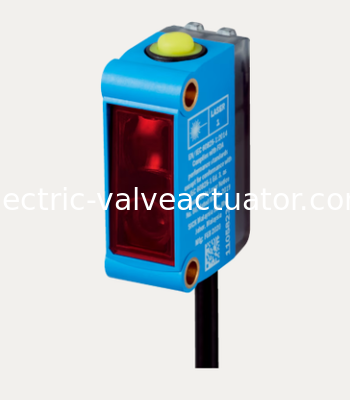

SICK KTM-LN55182P Color Mark Sensor Laser Contrast Sensor NPN Output 250mm Detection Range

Name: SICK KTM-LN55182P Color Mark Sensor Laser Contrast Sensor NPN Output 250mm Detection Range
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: KTM-LN55182P
Price: 1.00 USD
Availability: InStock

Brand Name:	SICK
Model Number:	KTM-LN55182P
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

OEM

Supply Voltage:

10 V DC ... 30 V DC

Residual Ripple:

≤ 5 Vss 1)

Current Consumption:

<35 MA2)

Switching Frequency:

1.5 KHz 3)

Response Time:

333 µs

Shake:

122 µs

Accuracy:

0.15 Mm

Output Current Imax:

100 MA 4)

Axis Length:

680 Nm

Laser Grade:

;I 2)

Sensing Distance:

≤ 250 Mm

Sensing Distance Tolerance:

± 30 Mm

Maximum Orbital Velocity:

10 M/s 3)

Packaging Details:

New original box

Product Description

SICK KTM-LN55182P Color Mark Sensor Laser Contrast Sensor

Product Overview

The SICK KTM-LN55182P laser contrast and color mark sensor is a high-performance industrial photoelectric solution designed for accurate mark detection on automated production machinery. With NPN switching output and a 250mm sensing range, this sensor excels at identifying faint color marks, contrast variations, and print gaps on various packaging materials.

Key Features

Precise laser optical technology with compact focused light spot
Detection of tiny registration marks on challenging surfaces
Integrated teach-in function for quick on-site calibration
Supports both static and dynamic setup configurations
Compact rugged housing for limited installation spaces
Strong anti-interference capability against ambient light
Universal 10-30 VDC industrial power supply
Standard NPN output for straightforward wiring

Technical Specifications

Detection Range	250 mm
Output Type	NPN Switching Output
Power Supply	10-30 VDC
Operating Temperature	-10°C to +50°C
Detection Capability	Color marks, contrast variations, print gaps

Applications

Widely used in food, pharmaceutical, cosmetic, and flexible packaging industries for core tasks including:

Fixed-length cutting operations
Synchronous positioning systems
Web tracking and alignment
Labeling machines and bag-making equipment
Slitting lines and filling production systems

Performance Benefits

This sensor effectively reduces waste caused by positioning deviation and improves overall production efficiency through stable detection at high conveying speeds, even on challenging surfaces like glossy plastic films, coated paper, aluminum foil, and uneven printed surfaces where conventional diffuse sensors fail.
