SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link

Name: SICK WTB26I-1H162420A00 Industrial Optical Sensor Long Range Detection with IO-Link
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: WTB26I-1H162420A00
Price: 1.00 USD
Availability: InStock

Brand Name:	SICK
Model Number:	WTB26I-1H162420A00
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

OEM

Minimum Triggering Sensing Distance:

30 Mm

Maximum Switch Distance:

3000 Mm

Cycle Time:

2.3 Ms

Process Data Length:

16 Bits

Working Voltage UB:

10 V DC... 30 V DC 1)

Residual Ripple:

≤ 5 VSS

Signal Voltage PNP High/low Level:

Approximately UB-2.5 V/0 V

Signal Voltage NPN High/low Level:

Approximately UB/<2.5 V

Output Current Imax:

≤ 100 MA

Repetitive Accuracy (response Time):

150 µs

Switching Frequency:

200 Hz 3)

Packaging Details:

New original box

Product Description

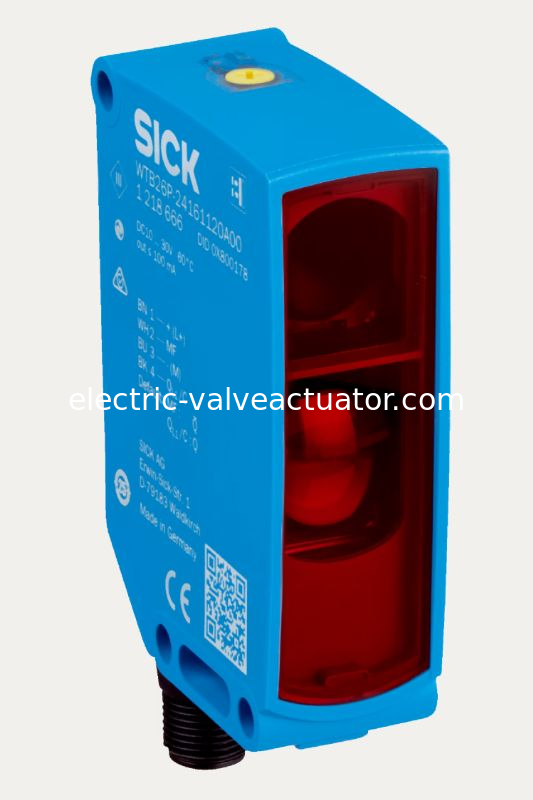

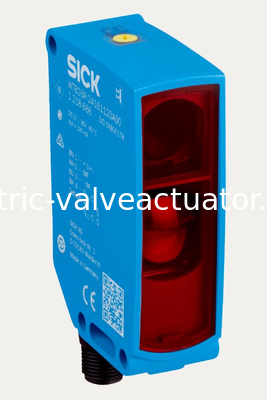

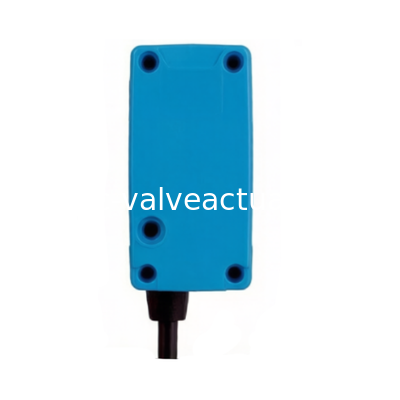

SICK WTB26I-1H162420A00 Industrial Optical Sensor

The SICK WTB26I-1H162420A00 is a professional diffuse reflection optical sensor with advanced background suppression, specifically designed for long-distance industrial detection applications. As part of SICK's versatile W26 series, this sensor utilizes high-stability infrared LED technology to deliver superior anti-interference performance in demanding automated industrial environments.

Key Features

Ultra-wide adjustable detection range: 30mm to 3000mm
Advanced background suppression technology
High-stability infrared LED light source
Flexible push-pull output (PNP/NPN dual-compatible)
IO-Link V1.1 smart communication capability
Durable 2-meter 4-wire cable outlet structure
Premium VISTAL® engineering plastic housing
Sealed structure resistant to dust, water, and chemical corrosion

Technical Specifications

Detection Range	30mm to 3000mm
Light Source	Infrared LED
Output Type	Push-pull (PNP/NPN compatible)
Communication	IO-Link V1.1
Cable Length	2 meters
Housing Material	VISTAL® engineering plastic

Performance Benefits

The sensor's focused infrared beam minimizes light diffusion and ambient light interference, ensuring accurate operation in various lighting conditions. Its optimized threshold calibration enables stable detection of low-contrast, dark, and thin workpieces. The intuitive teach-in adjustment design allows for quick parameter calibration without specialized tools, significantly improving commissioning efficiency.

Industrial Applications

This sensor is ideal for demanding industrial environments including:

Logistics conveying systems
Heavy machinery manufacturing
Warehousing automation
Automotive production lines
Long-range object presence monitoring
Inventory position detection
Large workpiece positioning
Conveyor material inspection

Engineered for long-term industrial endurance, the WTB26I-1H162420A00 offers stable signal output, minimal detection deviation, and excellent anti-vibration performance. Combining ultra-long detection distance, industrial durability, and digital intelligence, it represents a high-value solution for modern long-distance automated sensing applications.
