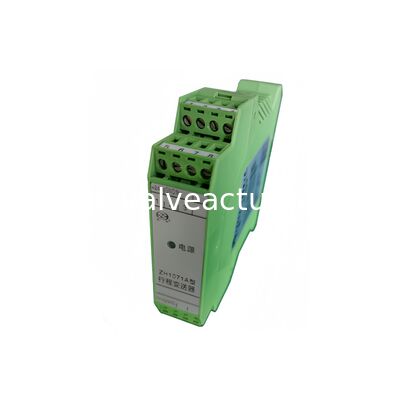

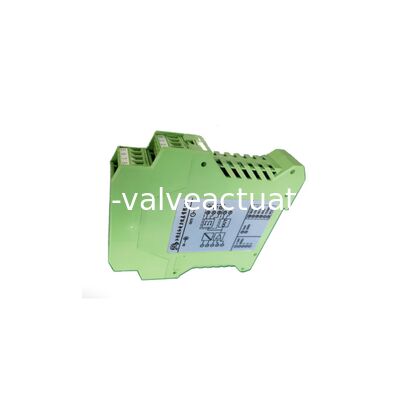

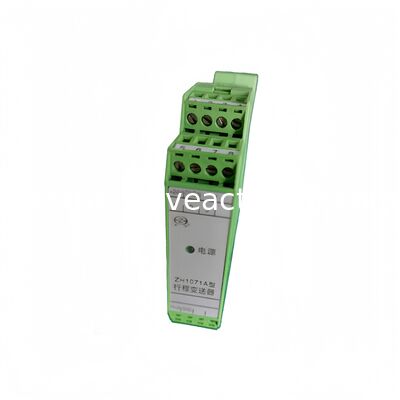

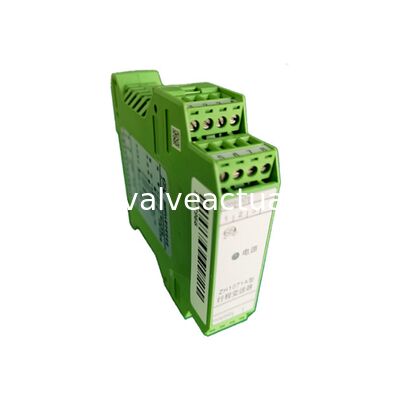

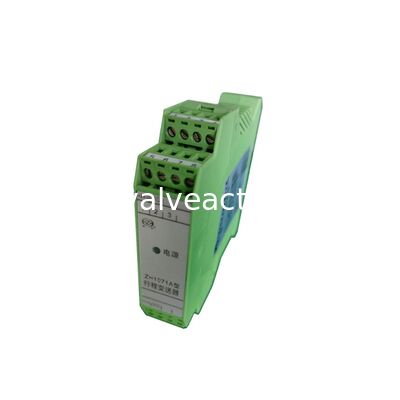

Zhong He ZH1071A LVDT Displacement Transmitter | AC LVDT Sensor for Stroke Measurement

Name: Zhong He ZH1071A LVDT Displacement Transmitter | AC LVDT Sensor for Stroke Measurement
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: Zhong He
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhong He
Model Number:	Zhong He
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Linearity Error:

≤0.5% FS

Eccentricity:

0～200μm

Specification:

12.4 X 9.4 X 1.8 Inches

Maximum Range:

40m²/h

Connector Type:

M8 / M12 / Custom

Output Current:

≤ 100 MA/≤ 30V

Systematic Error:

≤ 2%

Frequency Range:

0 - 10 KHz

Warranty:

1 Year

Transport Package:

Carton

Accuracy:

±0.5%

Protection Level:

IP66

Wire Cores:

3 /6 Wires

Packaging Details:

New original box

Product Description

Zhong He ZH1071A LVDT Displacement Transmitter | AC LVDT Sensor for Stroke Measurement

Product Overview

The Zhong He ZH1071A is a high-precision AC LVDT (Linear Variable Differential Transformer) displacement transmitter engineered for accurate stroke measurement and linear displacement detection. Utilizing advanced inductive sensing technology, this contactless sensor converts linear mechanical motion into proportional electrical signals, delivering exceptional reliability in demanding industrial environments.

Advanced Sensing Technology

This AC LVDT sensor features a primary winding and two symmetric secondary windings with a movable ferromagnetic core that moves axially without physical contact with the coil assembly. The contactless design ensures frictionless operation and virtually infinite service life.

Key Performance Features

High precision measurement with linearity error ≤0.5% FS
Exceptional resolution for precise displacement detection
Configurable measuring range from ±1mm to ±750mm
Excellent repeatability and low hysteresis
Temperature drift ≤0.02%/℃ for stable performance
Wide operating temperature range: -25℃ to 80℃

Technical Specifications

Operating Principle	AC LVDT (Linear Variable Differential Transformer)
Excitation	AC: 1~5V, 1~5kHz
Output Signal	Differential AC signals proportional to displacement
Output Interface	4~20mA analog output
Protection Rating	IP65 fully sealed stainless steel housing
Mounting	Standard threaded mounting

Industrial Applications

Designed for seamless integration with DCS, PLC systems, and data recorders, the ZH1071A is widely applied in:

Power turbines and hydraulic systems
Industrial automation processes
Machine tool stroke measurement
Precision displacement monitoring

The ZH1071A AC LVDT sensor offers maintenance-free operation with robust construction that resists dust, oil, and water splashes, ensuring reliable performance in the most challenging industrial conditions.
