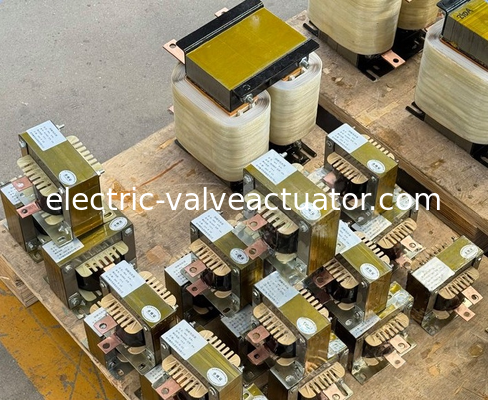

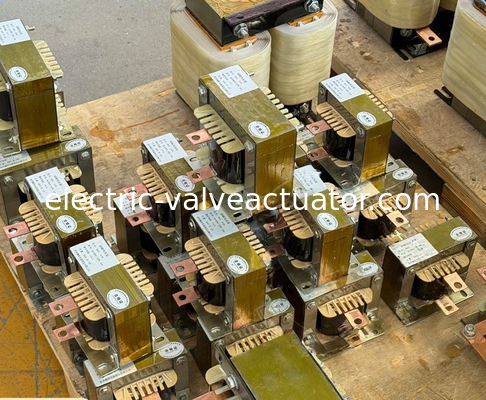

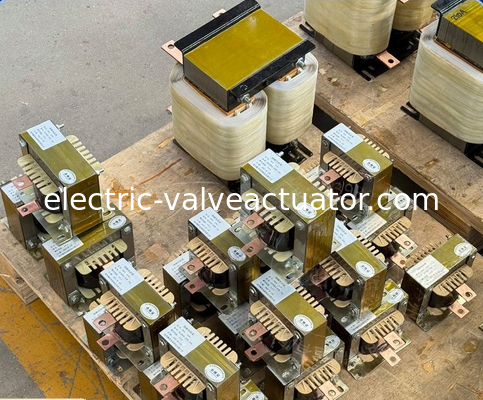

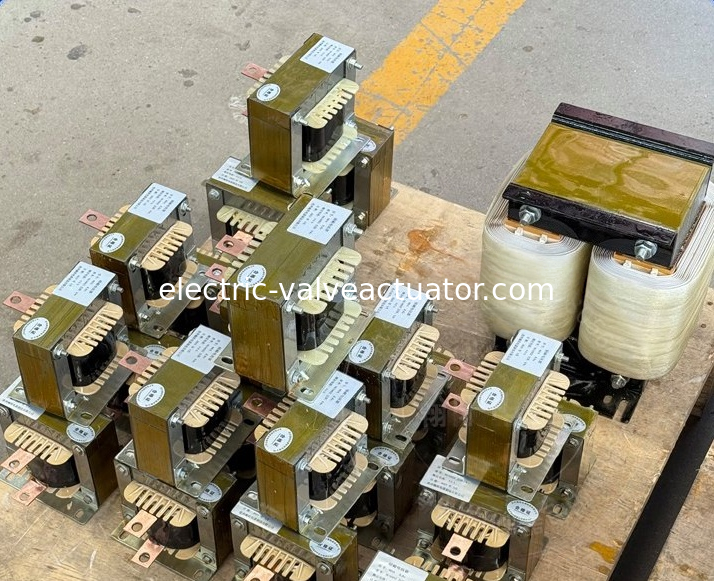

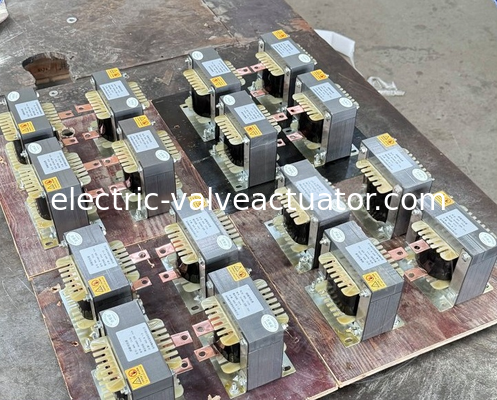

DC Reactor Model DC-010, 50A 8.8V Single Phase Smoothing Choke

Name: DC Reactor Model DC-010, 50A 8.8V Single Phase Smoothing Choke
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: DC-010
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	DC-010
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Reactance Coefficient:

0.01

Rated Frequency:

40Hz

Specifications:

20A

Short Circuit Closing Current:

Peak Withstand Current:

1.3A

Number Of Circuits:

One

Rated Voltage Of The System:

450V

Rated Current:

20A

Working Voltage:

450V

Insulation Voltage:

3000V

Main Circuit Voltage:

440V

Total Power Consumption:

Packaging Details:

New original box

Product Description

DC Reactor Model DC-010, 50A 8.8V Single Phase Smoothing Choke

Introducing the DC Reactor Model DC-010, a high-performance single-phase smoothing choke engineered for stable DC system operation, with rated parameters of 50A current and 8.8V voltage. As an essential component in DC circuits, it specializes in smoothing rectified power, eliminating current ripples, and enhancing the reliability of power electronic systems.

Construction & Design

Crafted with premium high-permeability silicon steel core and high-quality copper windings, the DC-010 boasts excellent inductive performance, effectively limiting AC components superimposed on DC current to a specified range. Its compact design ensures easy installation in various equipment, while the VPI vacuum pressure impregnation process strengthens insulation and structural stability, enabling resistance to moisture, salt fog, and mould.

Core Functions

Stabilizes DC current by storing energy when current exceeds average values and releasing energy when current drops
Effectively suppresses current fluctuations and harmonics generated by converters
Improves input power factor and prevents rectifier bridge damage
Prevents capacitor overheating caused by inrush current
Limits current rise rate during fault conditions

Applications

Widely applicable in frequency converters, photovoltaic systems, medical equipment, and industrial control devices, the DC-010 delivers consistent performance with low loss, low temperature rise, and high operational efficiency.

The DC-010 complies with relevant industry standards, ensuring safe and reliable operation in harsh working environments, with a long service life that offers excellent cost-effectiveness. With its precise parameter matching, robust construction, and superior smoothing capability, it is the ideal choice for optimizing DC power quality, protecting sensitive electronic components, and ensuring stable operation of your equipment.
