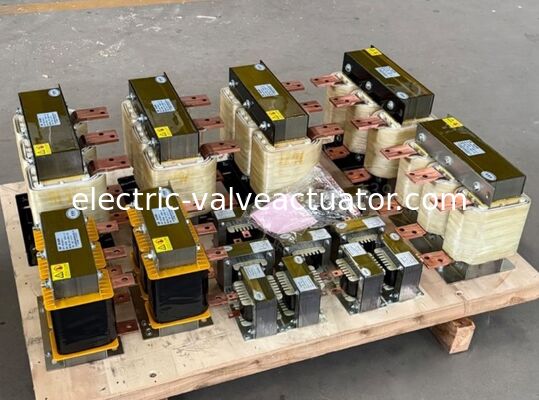

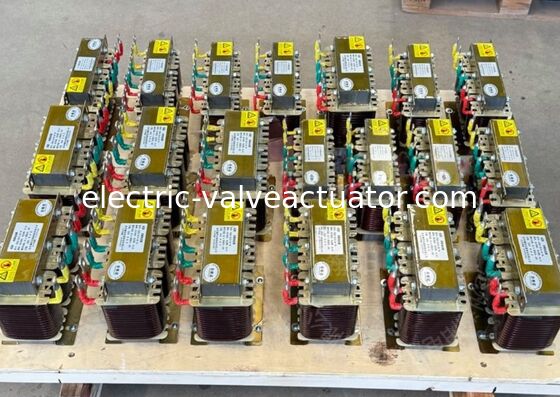

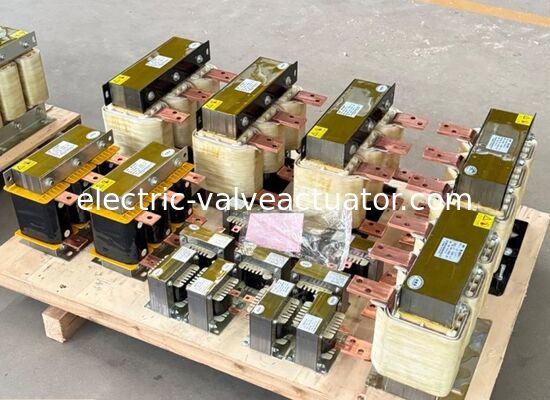

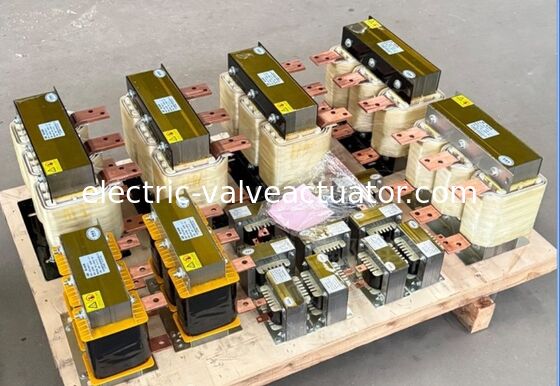

OCL-365 315KW 650A AC Input Reactor for Variable Frequency Drive (VFD)

Name: OCL-365 315KW 650A AC Input Reactor for Variable Frequency Drive (VFD)
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: OCL-365
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	OCL-365
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Reactance Coefficient:

0.01

Rated Frequency:

40Hz

Short Circuit Closing Current:

Peak Withstand Current:

1.3A

Rated Current:

20A

Working Voltage:

450V

Insulation Voltage:

3000V

Rated Voltage Of The System:

450V

Total Power Consumption:

Main Circuit Voltage:

440V

Packaging Details:

New original box

Product Description

OCL-365 315KW 650A AC Input Reactor for Variable Frequency Drive (VFD)

The OCL-365 AC Input Reactor is a high-performance inductive component specifically engineered for Variable Frequency Drives (VFDs), with rated parameters of 315KW and 650A. Installed between the AC power supply and VFD input terminals, it serves as a critical protective barrier to enhance system reliability and power quality.

Designed to address common VFD operation challenges, the OCL-365 effectively suppresses harmonic distortion, reducing total harmonic distortion (THD) caused by nonlinear VFD loads and ensuring compliance with IEEE 519 standards. It buffers voltage spikes and transient disturbances from the power grid, preventing damage to VFD internal components such as rectifier diodes and capacitors.

With its 315KW power capacity and 650A current rating, the reactor provides stable impedance to limit inrush current during VFD startup, avoiding nuisance tripping and extending the service life of associated equipment. Its robust structure adopts high-quality laminated steel core and copper windings, ensuring excellent heat dissipation, low energy loss, and strong anti-interference performance even in harsh industrial environments.

Key advantages include:

Easy installation and low maintenance requirements
Compact design suitable for various industrial VFD applications
Optimizes power factor and reduces grid interference
Ensures smooth VFD operation for industrial motor control
Cost-effective protection solution combining reliability and practicality
