OCL-250A Pure Copper Line Reactor with 250A Current Rating for Harmonic Distortion Mitigation in VFD Systems

Name: OCL-250A Pure Copper Line Reactor with 250A Current Rating for Harmonic Distortion Mitigation in VFD Systems
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: OCL-250A
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	OCL-250A
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Reactance Coefficient:

0.01

Rated Frequency:

40Hz

Dielectric Strength:

0.1V/m

Short Circuit Closing Current:

Peak Withstand Current:

1.3A

Rated Current:

20A

Working Voltage:

450V

Insulation Voltage:

3000V

Rated Voltage Of The System:

450V

Main Circuit Voltage:

440V

Packaging Details:

New original box

Product Description

OCL-250A Line Reactor Pure Copper In/Out Inductor for VFD Variable Frequency Drive

Product Overview

The OCL-250A Line Reactor is a high-performance pure copper in/out inductor specifically engineered for variable frequency drives (VFDs). Designed to enhance power quality, protect drive systems, and ensure stable long-term operation in demanding industrial applications.

Key Features

100% pure copper windings for superior electrical conductivity
Minimizes energy loss and reduces heat generation
Excellent mechanical strength and corrosion resistance
250A current rating for mid-to-high power VFD systems
Functions as both input and output reactor
Mitigates harmonic distortion and filters voltage spikes
Suppresses high-frequency PWM voltage spikes
Extends motor lifespan and protects VFD components
Compact design for easy installation in control cabinets

Technical Benefits

This reactor effectively lowers total harmonic distortion (THD), improves power factor, and prevents nuisance tripping of VFDs, ensuring smooth and reliable operation of your drive system. The pure copper construction ensures long service life even in harsh industrial environments.

Applications

Suitable for a wide range of industrial VFD applications including pumps, fans, conveyors, and machine tools. A cost-effective solution to power quality and system protection challenges.

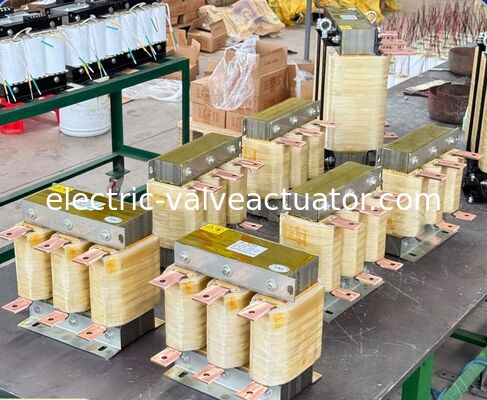

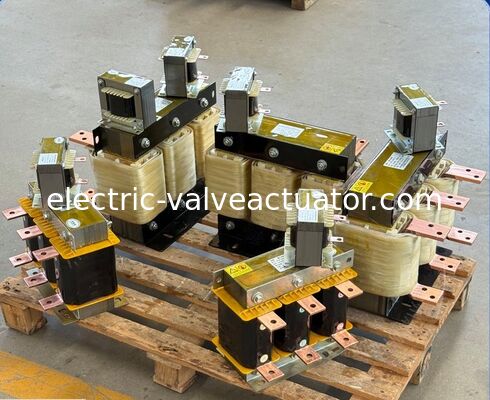

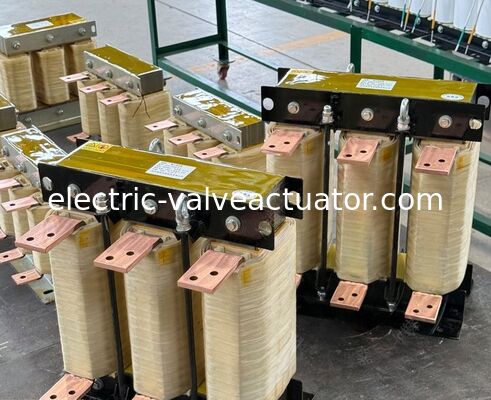

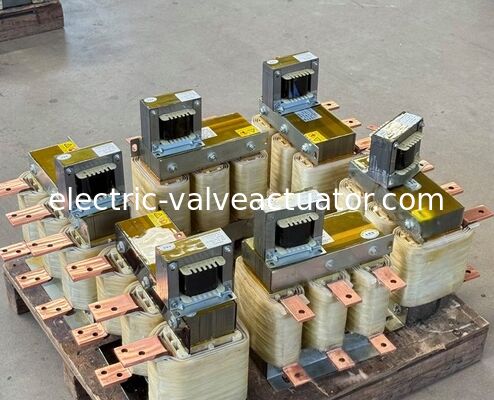

Product Image
