Zhong He LDSB-3024G Intelligent Temperature Monitoring and Control Device

Name: Zhong He LDSB-3024G Intelligent Temperature Monitoring and Control Device
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: LDSB-3024G
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhong He
Model Number:	LDSB-3024G
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

intelligent temperature control device

rotational speed sensor with monitoring

LDSB-3024G temperature monitoring device

Product Description

Zhong He LDSB-3024G Intelligent Temperature Monitoring and Control Device

Advanced temperature monitoring and control system designed for precise industrial applications with comprehensive output options and flexible configuration capabilities.

Technical Specifications

Measurement Accuracy: Digital display ±0.5% FS ±1 digit

Temperature Compensation Range: 0～50℃

Environmental Conditions:

Operating temperature: 0～50℃
Relative humidity: ≤85%

Avoid use in environments with corrosive, flammable, or explosive gases.

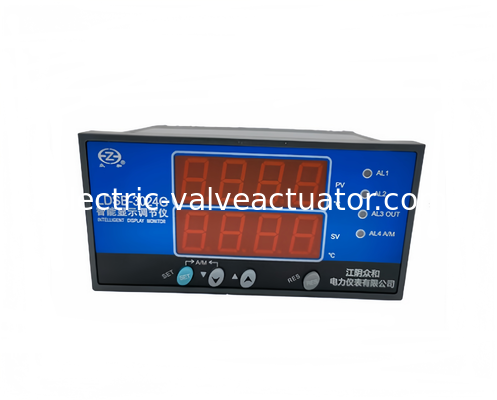

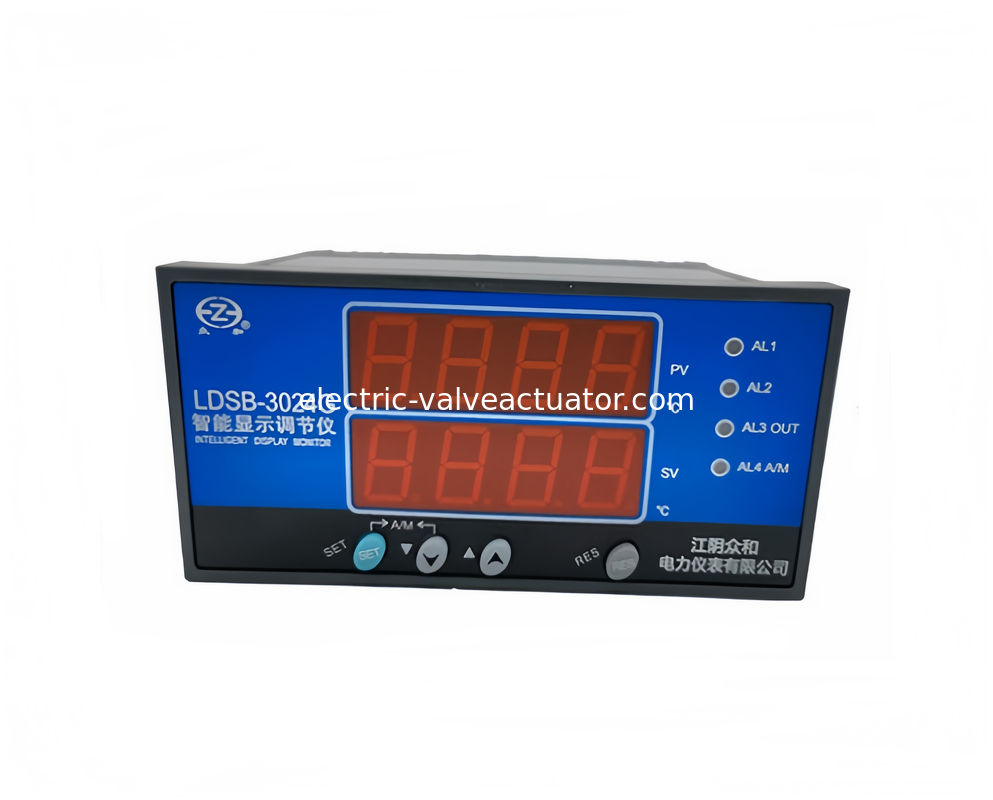

Display Method: Dual-screen four-digit display with LED status indicators

Output Capabilities

Switch Output

Each output point can be configured as upper/lower limit control/alarm with hysteresis

Relay Output: Contact capacity (resistive load): AC220V/5A; DC24V/5A
SCR Zero-crossing Trigger Pulse Output: Can trigger 600V/100A silicon controlled rectifier
Solid State Relay Control Signal Output: Output DC 9V/30mA
SCR Zero-crossing Trigger Output: Bidirectional silicon controlled rectifier 600V/5A, can trigger 600V/100A SCR

Analog Output

DC 0～10mA output, load resistance ≤1.5kΩ
DC 4～20mA output, load resistance ≤750Ω
DC 0～5V output, load resistance ≥250kΩ
DC 1～5V output, load resistance ≥250kΩ

Power Supply Output

DC 24V, load ≤30mA

Power Supply Options

AC/DC power supply 90～260V, power ≤4W, weight 260g
AC/DC power supply 20～30V, power ≤6W, weight 260g
