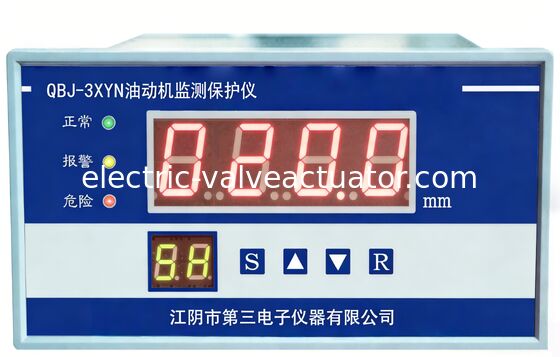

QBJ-3XYN Oil Actuator Monitoring Device｜Equipment Protection and Fault Alarm System

Name: QBJ-3XYN Oil Actuator Monitoring Device｜Equipment Protection and Fault Alarm System
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: QBJ-3XYN
Price: 1.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	QBJ-3XYN
MOQ:	1
Price:	Negotistical

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

oil actuator monitoring device

rotational speed sensor with fault alarm

equipment protection monitoring system

Product Description

QBJ-3XYN Oil Actuator Monitoring Device｜Equipment Protection and Fault Alarm System

System Overview

The QBJ-3XYN hydraulic actuator monitoring and protection instrument utilizes a TD-1 sensor to measure hydraulic actuator position. This monitoring system measures the opening degree of turbine hydraulic actuators, which is critical for the normal operation of the entire unit. The QBJ-3XN oil tank level monitoring and protection instrument employs a QBJ-(R)UT-81 sensor to measure oil levels in the tank.

Technical Parameters

Measuring Range	0～200mm (range can be customized by the user) 0～±200mm (range can be customized by the user)
Accuracy	System error ≤1%
Operating Environment	Instrument temperature: -25℃～45℃, relative humidity ≤80% (instrument) Sensor temperature: -25℃～85℃, relative humidity ≤90% (sensor)
Constant Current Output	4～20mA (can be directly fed into the DCS system passive contact)
Alarm Setting	Arbitrarily set within the measuring range
Dimensions	Width 160 * Height 80 * Depth 260 (mm)
Opening Dimensions	Width 153 * Height 77 * Depth 260 (mm)
Power Supply	AC220V±10%/50Hz

Main Functions

Displacement display with separate (positive and negative) alarms and (positive and negative) danger relay contact outputs
Current outputs corresponding to (4-20mA) from lower to upper limit of measuring range
Power-on reset delay: normal indicator off, 5-second delay to release lockout upon recovery
Alarm danger value can be arbitrarily set within the measuring range
Four-level selectable delay setting for alarm danger relay output
Freely adjustable measuring range
Automatic return to measurement state after 1 minute of inactivity in data setting value viewing
