SDJ-3B/3L Multi-function Vibration Monitoring and Protection Instrument Rotating Machinery Vibration Monitoring Instrument

Name: SDJ-3B/3L Multi-function Vibration Monitoring and Protection Instrument Rotating Machinery Vibration Monitoring Instrument
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SDJ-3B/3L
Price: 1.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	SDJ-3B/3L
MOQ:	1
Price:	Negotistical

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

10-300Hz Frequency Range Vibration Monitoring Instrument

4-20mA Output Vibration Protection Device

LED Digital Display Rotating Machinery Monitor

Product Description

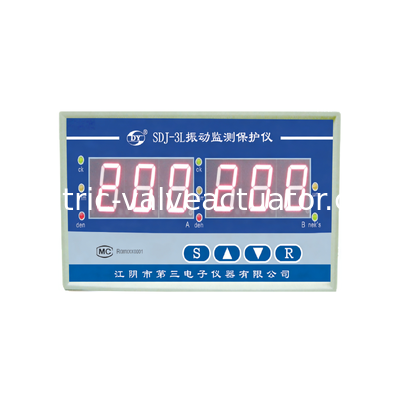

SDJ-3B/3L Multi-function Vibration Monitoring and Protection Instrument

The SDJ-3B and SDJ-3L vibration monitoring and protection devices are advanced multi-functional instruments designed for rotating machinery vibration monitoring. These devices utilize two independent SG-2 type velocity sensor signals to continuously display amplitude or velocity values on LED digital displays for each channel.

System Overview

Available in both panel-mounted and wall-mounted versions, these monitoring and protection devices are primarily suitable for critical applications in power generation, steel production, building materials, and chemical industries.

Technical Specifications

Parameter	Specification
Measurement Range	SDJ-3B Amplitude: 0-400μm (peak-to-peak) SDJ-3L Intensity: 0-20.0 mm/s (RMS)
Frequency Range	10-300Hz
Sensor Compatibility	SG-2 type vibration velocity sensor
Display Method	Independent digital displays for Channels A and B
Output Signals	Current: 4-20mA (corresponding to upper/lower limits) TDM output for vibration signal analysis Alarm/Danger switch: Passive contact DC24V/2A
Operating Temperature	Instrument: -25°C to 55°C (≤80% humidity) With SG-2 normal temp sensor: -25°C to 100°C With SG-2W high temp sensor: -25°C to 120°C
Power Supply	AC220V ±10% / 50Hz

Installation Dimensions

Panel Mount (Disc Type):
External: 160mm (W) * 80mm (H) * 260mm (D)
Opening: 153mm (W) * 77mm (H) * 260mm (D)
Wall Mount:
External: 192.5mm (W) * 290mm (H) * 95mm (D)
Installation: 170mm (W) * 272mm (H) * 98mm (D)
SG-2 Vibration Sensor:
Dimensions: Ø35mm * 65mm
Fixing Screws: M10*1.5*10mm

Note: Factory default settings are 0-200μm for SDJ-3B and 0-20.0 mm/s for SDJ-3L unless otherwise specified by the user.
