SICK DL100-21AA2101 Photoelectric Laser Distance Sensor with SSI Ethernet Interface for Industrial Applications (18-30V)

Name: SICK DL100-21AA2101 Photoelectric Laser Distance Sensor with SSI Ethernet Interface for Industrial Applications (18-30V)
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: DL100-21AA2101
Price: 1.00 USD
Availability: InStock

Brand Name:	SICK
Model Number:	DL100-21AA2101
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Supply Voltage:

DC 18... 30V (DC 18~30V)

Power Level:

Class 2 (safe Low-power Power Supply)

Output Current:

≤ 100 MA/≤ 30V

Maximum Power Consumption:

Maximum Ambient Temperature:

+55 ° C

Packaging Details:

New original box

Highlight:

SICK laser distance sensor with SSI

industrial photoelectric sensor Ethernet

DL100-21AA2101 distance sensor 18-30V

Product Description

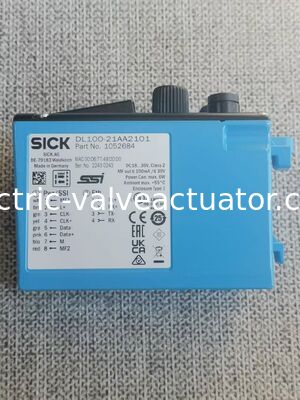

SICK DL100-21AA2101 Photoelectric Laser Distance Sensor

The SICK DL100-21AA2101 is a high-performance photoelectric laser distance sensor engineered for demanding industrial applications. Featuring SSI and Ethernet interfaces, this sensor delivers reliable, high-precision distance measurement to enhance automation and process control efficiency across diverse industrial environments.

Key Features & Performance

Class 2 red laser (650 nm wavelength) with 0.15m to 100m sensing range
Exceptional measurement accuracy: ±2 mm with 0.5 mm repeatability
Fast 2ms response time supporting speeds up to 30 m/s
SSI and Ethernet interfaces for seamless system integration
18-30V DC power supply for stable operation in harsh environments
M12 SpeedCon connector for easy and secure wiring

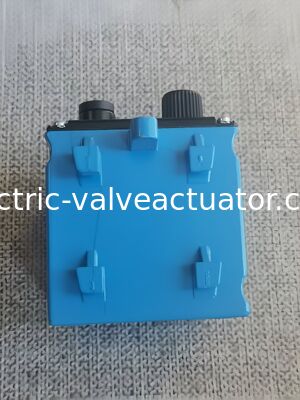

3-axis adjustable mounting bracket for quick installation
Die-cast aluminum/zinc housing with IP65 protection rating
Operating temperature range: -20°C to 55°C

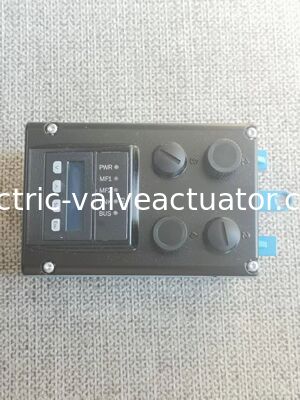

Dot-matrix backlit LCD display with status LEDs

Technical Specifications

Measurement Range	0.15 m to 100 m
Accuracy	±2 mm
Repeatability	0.5 mm
Response Time	2 ms
Laser Type	Class 2 red laser, 650 nm
Power Supply	18-30 V DC
Interfaces	SSI, Ethernet
Protection Rating	IP65
Operating Temperature	-20°C to 55°C
Connector	M12 SpeedCon

Industrial Applications

Logistics Warehousing Stacker Positioning Shuttle Positioning Steel Industry Crane Positioning Trolley Positioning Closed-Loop Control Systems

This sensor enhances closed-loop control performance and overall productivity in various industrial automation scenarios.

Certifications & Standards

Compliant with CE and RoHS standards, ensuring quality and environmental responsibility.
