Zhong he BSQ011d 4-20mA Vibration Transmitter for Condition Monitoring

Name: Zhong he BSQ011d 4-20mA Vibration Transmitter for Condition Monitoring
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: BSQ011d
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhong he
Model Number:	BSQ011d
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

4-20mA vibration transmitter

condition monitoring vibration sensor

rotational speed sensor transmitter

Product Description

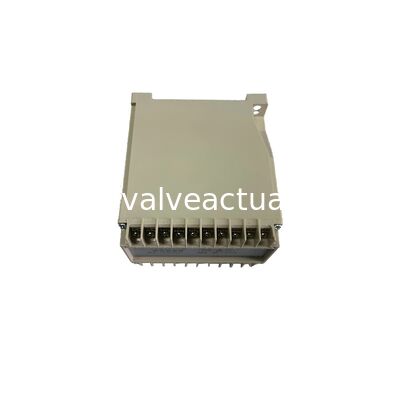

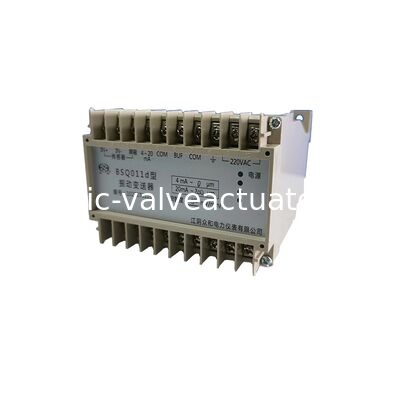

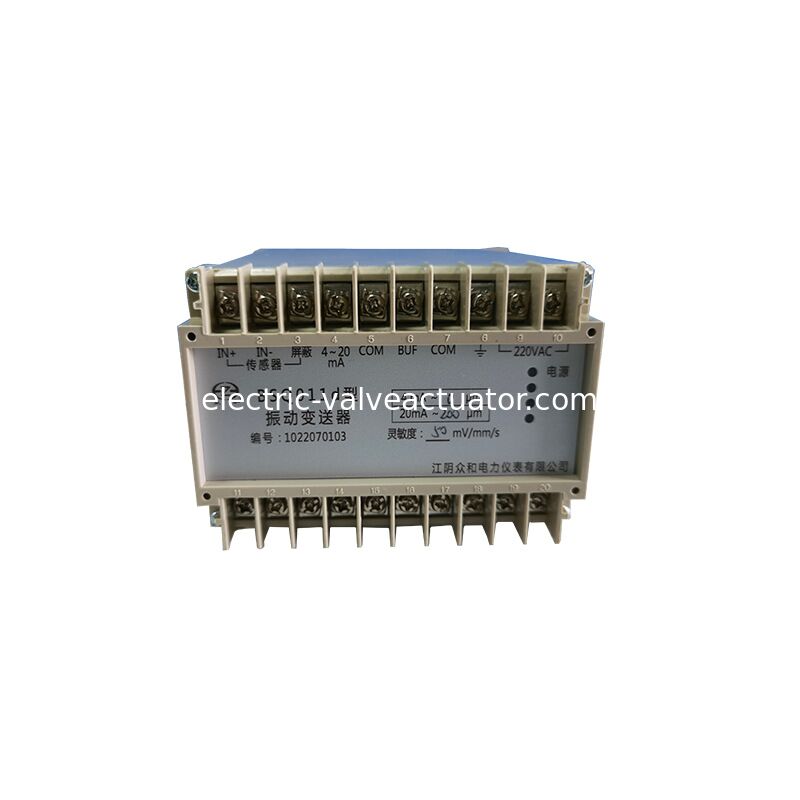

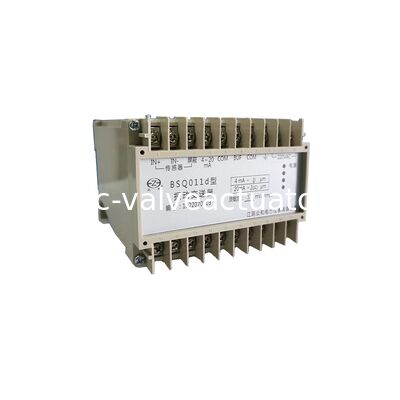

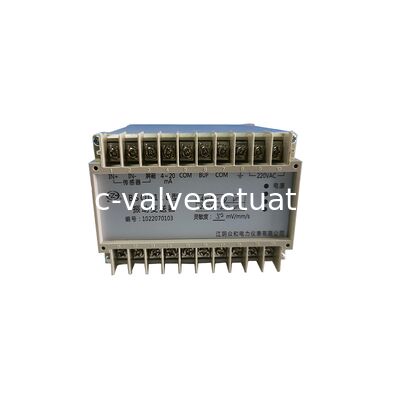

Zhong he BSQ011d 4-20mA Vibration Transmitter for Condition Monitoring

Vibration measurement is an essential monitoring and protection device for various large rotating machinery. The input signal comes from the SZ series magnetoelectric velocity sensor, enabling continuous monitoring and measurement of absolute peak-to-peak vibration or vibration velocity in bearings of various rotating machinery. The system outputs analog current or voltage, alarm, shutdown, and sensor buffer signals, and can be easily integrated with DCS, PLC systems, and paperless recorders.

Applications

Vibration monitoring and protection for rotating machinery including steam turbines, compressors, and fans.

Technical Specifications

Model	Power Supply	Input Signal	Measuring Range	Frequency Range	Current Output	Alarm Output
BSQ011a	DC+24V	SZ-6 Magnetoelectric Speed Sensor	Any range within (0～500)μm	10～500Hz	(4~20)mA or (0~10)mA Accuracy: ±1.0% of full scale Maximum Load: 500Ω	Maximum 2 points
BSQ011b	AC220V					None
BSQ011c	DC+24V					Maximum 2 points
BSQ011d	AC220V					None
BSQ015a	DC+24V		Any range within (0~50)mm/s			Maximum 2 points
BSQ015b	AC220V					None
BSQ015c	DC+24V					Maximum 2 points
BSQ015d	AC220V					None

Alarm Output Specifications

Any setting within full scale, LED alarm indication, relay switch output (normally open and normally closed contacts), Capacity 28VDC/2A, 250VAC/1A

Buffer Output

The sensor's raw signal output, convenient for on-site vibration analysis

Operating Environment

Environment: Non-corrosive, non-magnetic field environments

Operating Temp: (0~50)℃

Storage Temp: (-40~60)℃

Humidity: (20~90)% (non-condensing)

Physical Specifications

Dimensions: W 100 mm × H 72 mm × D 113 mm

Weight: Approximately 350g
