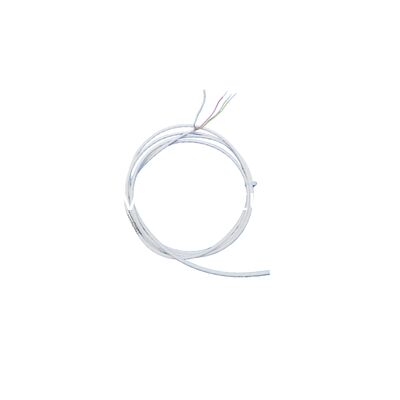

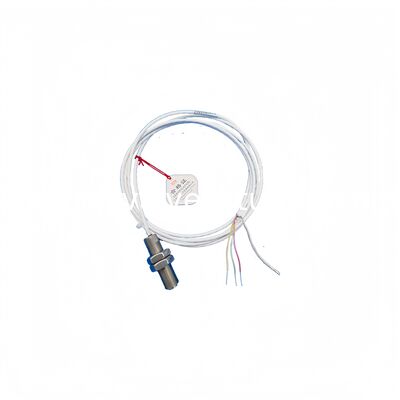

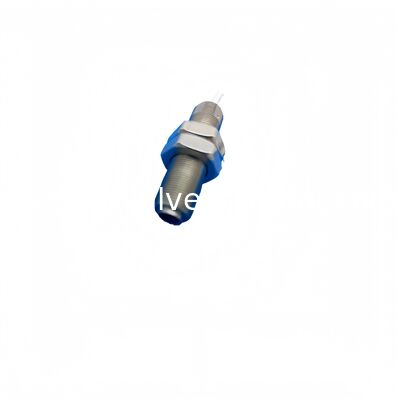

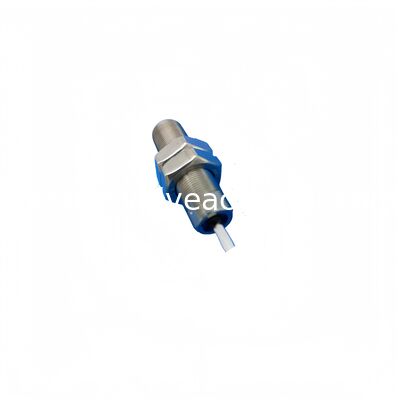

Zhong he SMCB-01 Industrial Gear Speed Sensor PNP Output for Rotational Speed Measurement

Name: Zhong he SMCB-01 Industrial Gear Speed Sensor PNP Output for Rotational Speed Measurement
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SMCB-01
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhong he
Model Number:	SMCB-01
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

industrial gear speed sensor PNP output

rotational speed sensor with warranty

PNP output speed measurement sensor

Product Description

Zhong he SMCB-01 Industrial Gear Speed Sensor

The SMCB-01 single-channel magnetic speed sensor utilizes advanced SMR sensitive element technology, triggered by steel magnetic conductors. This industrial sensor delivers exceptional performance with wide frequency response, superior stability, and robust anti-interference capabilities for precise rotational speed measurement applications.

Key Technology Features

Features internal amplification and shaping circuitry that outputs stable square wave signals for reliable long-distance transmission. Capable of measuring rotational speed, angular displacement, and providing precise equipment positioning with high reliability and durability.

Technical Specifications

Parameter	Specification
Operating Voltage	DC 5~24V
Response Frequency	0~15 KHz
Output Signal	Square wave signal (High level: Approximate power supply voltage; Low level: ≤0.3V)
Output Type	TTL, NPN, or PNP (Default: PNP output)
Triggering Method	Steel gear, rack, or other soft/hard magnetic materials (Tooth width distance ≥1.5mm)
Operating Distance	0.5~4mm
Operating Temperature	-25℃ to +80℃
Humidity Range	≤95% RH
Measurement Accuracy	±1 pulse
Protection Features	Polarity and short circuit protection
Protection Class	IP65

Application Benefits

Precise rotational speed measurement for industrial equipment
Accurate angular displacement monitoring
Reliable equipment positioning and synchronization
Robust construction for demanding industrial environments
Long-distance signal transmission capability
Superior anti-interference performance
