SG-2F Explosion Proof Vibration Sensor - High Sensitivity Industrial Vibration Probe with Wide Frequency Range

Name: SG-2F Explosion Proof Vibration Sensor - High Sensitivity Industrial Vibration Probe with Wide Frequency Range
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SG-2F
Price: 1.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	SG-2F
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

10～300Hz

Sensitivity:

30.0mv/mm/s±2mv

Maximum Acceleration:

Measurement Range:

2mm (pp)

Operating Environment:

-25～120℃

Measurement Method:

Vertical Or Horizontal

Dimensions:

φ35×75

Weight:

0.26Kg

Mounting Screw Hole:

M10×1.5, Depth 10mm

Packaging Details:

New original box

Highlight:

Explosion Proof Vibration Sensor

High Sensitivity Vibration Probe

Wide Frequency Range Vibration Sensor

Product Description

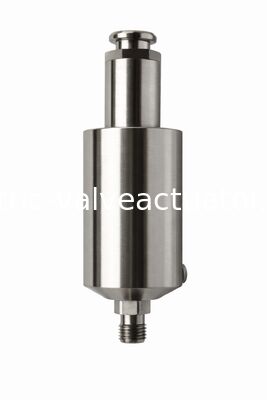

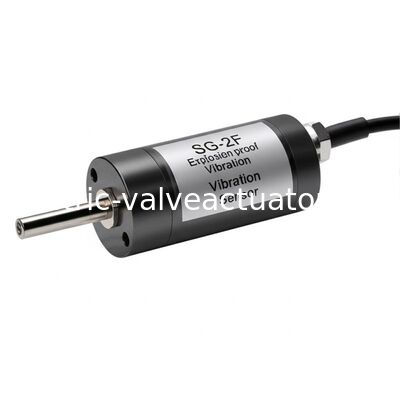

SG-2F Explosion Proof Vibration Sensor - Industrial High Sensitivity Vibration Probe

The SG-2F Explosion-proof Vibration Sensor is a high-sensitivity industrial vibration probe engineered for real-time online monitoring of rotating machinery in hazardous environments.

Key Features

Integrated explosion-proof design for flammable and explosive industrial environments
High sensitivity with wide frequency response range: 10-1000Hz
Multiple measuring range options for vibration velocity (0-10/20/50/100mm/s) and acceleration (0-5g/10g/20g)
Ultra-high measurement accuracy: less than ±5% F.S with 0.1mm/s resolution
Two-wire system with standard 4-20mA current output
Easy installation with M8/M10 thread or magnetic base options
Direct connectivity to PLC, DCS and industrial control systems

Technical Specifications

Frequency Response	10-1000Hz
Measurement Range	Velocity: 0-10/20/50/100mm/s Acceleration: 0-5g/10g/20g
Accuracy	< ±5% F.S
Resolution	0.1mm/s
Output Signal	4-20mA two-wire system
Installation Options	M8/M10 thread or magnetic base

Applications

This vibration sensor is widely used for monitoring critical rotating equipment including fans, steam turbine units, generators, centrifuges, compressors, and other industrial machinery to detect potential faults such as bearing wear, cracking, unbalance, and misalignment.

Benefits

The SG-2F provides reliable safety monitoring that helps prevent equipment damage from abnormal operation, reduces unplanned downtime and maintenance costs, and ensures stable, efficient operation of industrial production lines in harsh industrial conditions.
