Zhonghe DWQZ Eddy Current Sensor with Φ8mm Armored Probe IP65 Protection and 2mm Sensing Range for Displacement Monitoring

Name: Zhonghe DWQZ Eddy Current Sensor with Φ8mm Armored Probe IP65 Protection and 2mm Sensing Range for Displacement Monitoring
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: DWQZ
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhonghe
Model Number:	DWQZ
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Sensing Range:

2mm

Protection Level:

IP65

Packaging Details:

New original box

Highlight:

Φ8mm Armored Probe Eddy Current Sensor

IP65 Protection Displacement Sensor

2mm Sensing Range Rotational Speed Sensor

Product Description

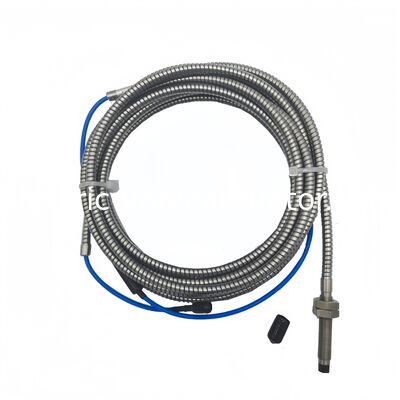

Zhonghe DWQZ Eddy Current Sensor with Φ8mm Armored Probe

The DWQZ eddy current sensor features a Φ8mm armored probe with extended cable for precision displacement monitoring in industrial applications.

Product Overview

Eddy current sensors provide non-contact linear measurement with exceptional reliability and performance. These sensors offer wide measurement ranges, high sensitivity, rapid response times, and robust resistance to interference and environmental contaminants.

Key Advantages:

High long-term reliability and measurement accuracy
Wide measurement range with high resolution
Fast response speed and strong anti-interference capability
Immunity to oil and other media contamination
Non-contact operation for minimal wear

Industrial Applications

Widely used in power generation, petroleum, chemical processing, and metallurgy industries for monitoring large rotating machinery including:

Steam turbines and water turbines
Blowers, compressors, and gearboxes
Large cooling pumps and rotating equipment
Radial and axial shaft displacement monitoring
Differential expansion and shaft eccentricity measurement
Shaft vibration analysis and rotational speed detection
Key phase monitoring

Product Configuration

System Components

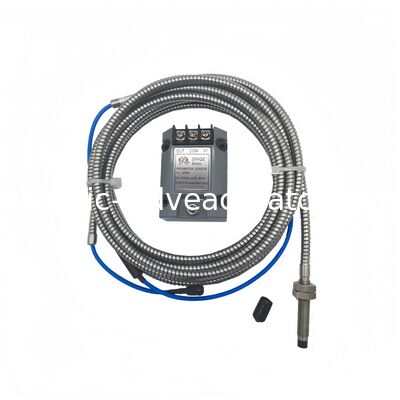

The DWQZ eddy current sensor system consists of three integrated components:

DWQZ Probe Assembly

The probe includes an inductor, protective cover, stainless steel housing, high-frequency cable, and connector. Available in multiple configurations:

Probe Diameter	Installation Options	Cable Length
Φ8mm, Φ11mm, Φ25mm	Upright, reverse, threadless	1m or 0.5m

DWQZ Extension Cables

Features SMA self-locking plugs with oil-proof protective sleeves for enhanced reliability in harsh environments.

Available Lengths
4m, 4.5m, 8m, 8.5m

DWQZ Preamplifier

The core component containing oscillation, linear detection, filtering, linear compensation, and amplification circuits. Available in three sizes corresponding to probe diameters with total cable lengths of 5m or 9m.

Configuration Options

Classification	Available Options
By Probe Diameter	DWQZΦ8mm, DWQZΦ11mm, DWQZΦ25mm
By Total Cable Length	5m, 9m
