Zhonghe ZH3000 Φ 25 eddy current sensor differential expansion measurement probe for steam turbine

Name: Zhonghe ZH3000 Φ 25 eddy current sensor differential expansion measurement probe for steam turbine
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: ZH3000 Φ 25
Price: 1.00 USD
Availability: InStock

Brand Name:	zhonghe
Model Number:	ZH3000 Φ 25
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Series:

DWQZ

Operating Temperature:

Forty

Protection Level:

IP65

Precision:

Precision 1%

Packaging Details:

Wooden box packing

Highlight:

Φ 25mm Eddy Current Sensor

IP65 Protection Rotational Speed Sensor

1% Precision Differential Expansion Probe

Product Description

Zhonghe ZH3000 Φ 25 Eddy Current Sensor Differential Expansion Measurement Probe for Steam Turbine

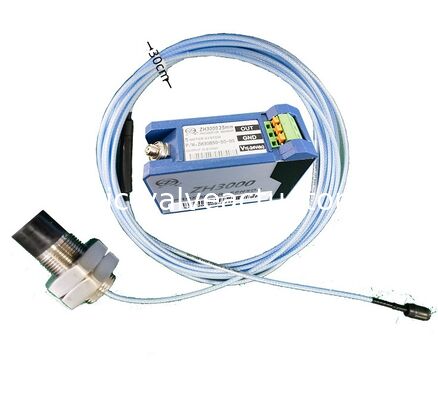

System Overview

The DWQZ series eddy current sensor system consists of three integrated components: DWQZ probe, DWQZ extension cable, and DWQZ preamplifier, designed specifically for precise differential expansion measurement in steam turbine applications.

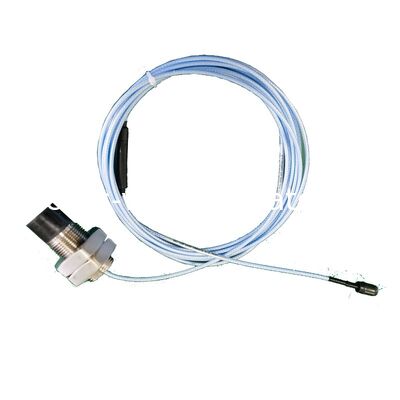

DWQZ Series Probes

Each probe assembly includes an inductor, protective cover, stainless steel housing, high-frequency cable, and high-frequency connector.

Available in multiple diameter specifications: Φ 8mm, Φ 11mm, and Φ 25mm to suit various measurement ranges
Flexible installation options: forward installation, reverse installation, and non-threaded configurations
Cable length options: 1m or 0.5m standard lengths

DWQZ Series Extension Cables

Engineered for reliable performance in industrial environments with specialized protection features.

Both ends feature SMA self-locking plugs for secure connections
Oil-resistant protective sleeve prevents contamination from oil-based media
Available in four standard lengths: 4m, 4.5m, 8m, and 8.5m

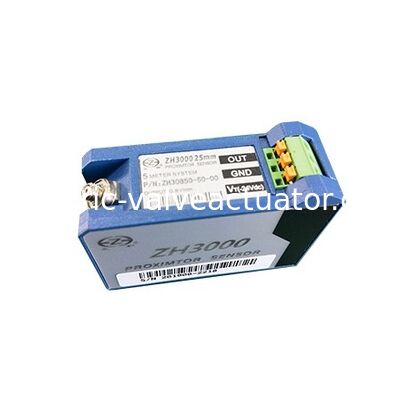

DWQZ Series Preamplifier

The core processing unit that integrates oscillation, linear detection, filtering, linear compensation, and amplification circuits to complete the sensor system.

Three specifications available to match probe diameters: Φ 8mm, Φ 11mm, and Φ 25mm
Two system cable length configurations: 5m and 9m total (probe cable + extension cable)
Comprehensive signal processing for accurate differential expansion measurement
