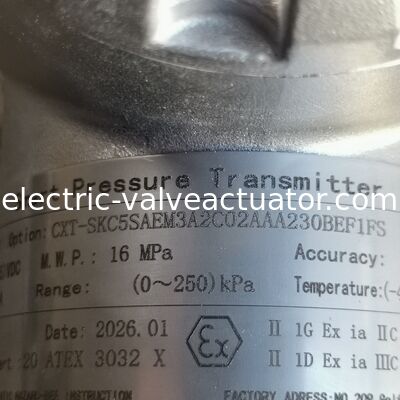

SUPCON CXT SKC5SAEM3A2C02AAA230AEF1FS Industrial Intelligent Pressure Transmitter with 4-20mA Current Range, 16MPa Max Pressure, and 0-250kPa Measurement Range

Name: SUPCON CXT SKC5SAEM3A2C02AAA230AEF1FS Industrial Intelligent Pressure Transmitter with 4-20mA Current Range, 16MPa Max Pressure, and 0-250kPa Measurement Range
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: CXT SKC5SAEM3A2C02AAA230AEF1FS
Price: 1.00 USD
Availability: InStock

Brand Name:	SUPCON
Model Number:	CXT SKC5SAEM3A2C02AAA230AEF1FS
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Current Range:

4-20mA

Maximum Work Pressure:

16MPa

Range Of Measurement:

0-250kPa

Accuracy:

0.05

Working Temperature:

-40~60 Degrees Celsius

Packaging Details:

New original box

Highlight:

4-20mA Current Range Pressure Transmitter

16MPa Maximum Work Pressure Intelligent Transmitter

0-250kPa Range of Measurement Industrial Transmitter

Product Description

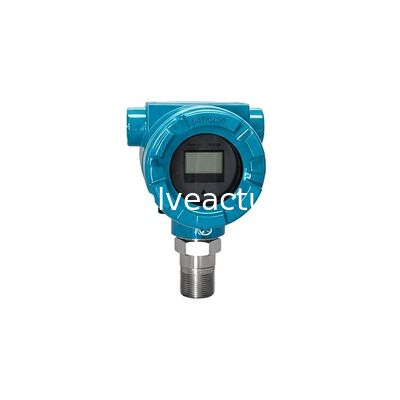

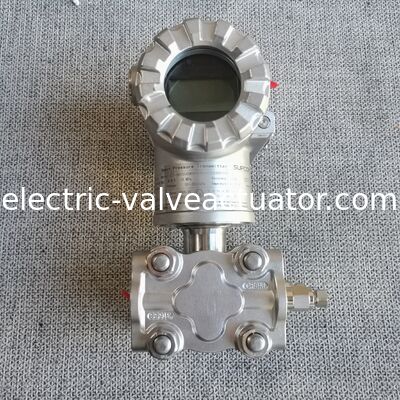

SUPCON CXT SKC5SAEM3A2C02AAA230AEF1FS Industrial Intelligent Pressure Transmitter

The SUPCON CXT SKC5SAEM3A2C02AAA230AEF1FS Industrial Intelligent Pressure Transmitter represents the pinnacle of precision measurement technology in SUPCON's CXT series. This advanced transmitter combines state-of-the-art MEMS sensing technology with sophisticated microprocessor algorithms and a robust 316 stainless steel all-welded construction to deliver exceptional accuracy and reliability in demanding industrial applications.

Key Features & Technical Excellence

Precision Performance

Basic accuracy up to ±0.04% FS (optional ±0.025% FS)
Long-term drift ≤±0.01% FS per year over 15 years
100:1 turndown ratio for flexible measurement ranges
Measurement range from 0~100Pa micro-differential to 70MPa high pressure

Robust Construction

316 stainless steel all-welded structure
IP67 protection rating
4kV lightning protection
Intrinsic safety and flameproof explosion-proof designs
Operates in extreme temperatures (-40℃ to 85℃)

Advanced Connectivity

HART 7.0 protocol support
PROFIBUS-PA compatibility
FOUNDATION Fieldbus integration
Seamless DCS/PLC system integration

Smart Operations

Intuitive on-site and remote operation
Advanced diagnostics for predictive maintenance
IEC 61508 SIL standards compliance
High vibration and corrosive media resistance

Technical Specifications

Parameter	Specification
Accuracy	±0.04% FS (optional ±0.025% FS)
Long-term Stability	≤±0.01% FS per year (15 years)
Turndown Ratio	100:1
Pressure Range	0~100Pa to 70MPa
Operating Temperature	-40℃ to 85℃
Protection Rating	IP67
Communication Protocols	HART 7.0, PROFIBUS-PA, FOUNDATION Fieldbus

Ideal Applications: This industrial intelligent pressure transmitter is specifically designed for petroleum, chemical, power generation, and pharmaceutical industries. It enables optimized process control, reduces total cost of ownership, and maximizes operational uptime through its trusted precision, exceptional durability, and intelligent performance capabilities.
