ABB GSH204 AC S-C32/0.1 Residual Current Short-Circuit Device for 6kA Nominal Short-Circuit Power and 230/400V AC Operating Voltage

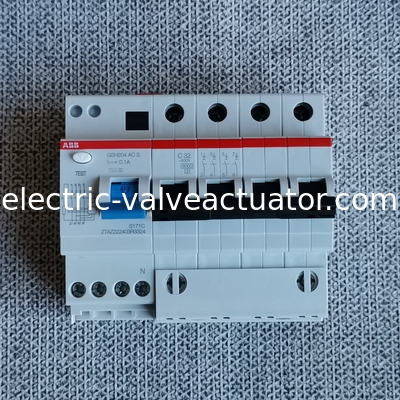

ABB residual current operated circuit breaker GSH204 AC S-C32/0.1

1  Rated Current​

With a rated current of 32 A, this device is designed to handle electrical loads within this capacity. It ensures stable operation under normal conditions, preventing overheating and premature tripping. This makes it suitable for a wide range of applications where the electrical demand hovers around 32 A.​

2  Number of Poles​

Featuring 4 poles, the GSH204 AC S - C32/0.1 is capable of protecting three - phase systems along with the neutral conductor. In industrial and commercial settings where three - phase power is commonly used, this multi - pole design is crucial for comprehensive electrical protection. It allows for the safeguarding of all phases, ensuring that any faults in the power supply are promptly detected and rectified.​

3 Tripping Characteristic​

The C - type tripping characteristic of this device is optimized for protecting against overloads and short - circuits typically caused by household and commercial electrical equipment. The C - curve is designed to respond rapidly to abnormal current levels. When the current exceeds the rated value, the device quickly trips, cutting off the power supply. This rapid response is essential for protecting both the connected electrical appliances and the safety of personnel.​

4 Rated Residual Current​

The rated residual current of 100 mA means that the GSH204 AC S - C32/0.1 is highly sensitive to leakage currents. As soon as a leakage current of 100 mA or more is detected, the device immediately trips. This sensitivity is a key safety feature, as it helps prevent electric shock hazards. In addition, by quickly disconnecting the power when a leakage current is detected, it also reduces the risk of electrical fires caused by faulty wiring or equipment.

As an ABB product, the GSH204 AC S - C32/0.1 is built with the highest quality materials and advanced manufacturing techniques. ABB has a long - standing reputation as a global leader in electrical products. This device adheres to ABB's strict quality standards, ensuring its durability and performance. It is designed to withstand various environmental conditions, including temperature fluctuations, humidity, and electrical interference. With a long - lasting performance, it reduces the need for frequent replacements and maintenance, providing cost - effective electrical protection over an extended period.​

In conclusion, the ABB GSH204 AC S - C32/0.1 residual current short - circuit device is a reliable and efficient solution for electrical protection in a variety of applications. Its technical specifications, wide range of applications, and high - quality construction make it a top choice for ensuring the safety and proper functioning of electrical systems.
