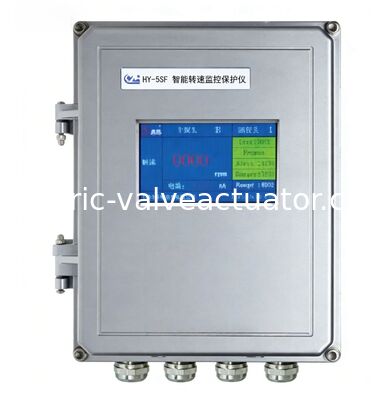

HY-5SE Rotational Speed Monitor and Protector with 4.3-inch TFT LCD Touch Screen RS485 Communication and IP56 Waterproof Casing

Name: HY-5SE Rotational Speed Monitor and Protector with 4.3-inch TFT LCD Touch Screen RS485 Communication and IP56 Waterproof Casing
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: HY-5SE
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	HY-5SE
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

4.3-inch TFT LCD touch screen Rotational Speed Monitor

RS485 communication interface Speed Protector

IP56 waterproof casing Electronic Control Relay

Product Description

HY-5SE Rotational Speed Monitor & Protector for Turbine, Motor

Advanced rotational speed monitoring and protection system designed for turbines and motors, featuring digital processing technology and robust industrial construction.

Key Features & Technology

Advanced high-performance embedded chips with digital processing technology
No adjustable components - all parameters permanently stored digitally
Compatible with RS series ES-08 eddy current sensor
Wide voltage input design: AC85V-265V or DC100V-360V
RS485 network communication interface with Modbus RTU protocol
4.3-inch TFT true-color LCD touch screen with bilingual interface
IP56 rated aluminum alloy waterproof casing for harsh environments

Technical Specifications

Measurement Range	0～99999 rpm
Input Signals	RS-1 (passive) speed sensor RS-2 (active) speed sensor RS-2F reverse speed sensor ES-08 series eddy current sensor
Measurement Accuracy	±1 rpm
Display	4.3-inch TFT true color touch screen
Tooth Count Setting	1 to 120 teeth (factory setting: 60 teeth)
Output Methods	Two-stage switch output: DC30V/5A or AC250V/5A Current Output: 4～20mA (load ≤ 850Ω) PULSE signal output for waveform analysis RS485 communication with Modbus RTU protocol
Operating Environment	Temperature: -40～65℃ Relative humidity: ≤ 95%
Power Supply	AC 85V～265V or DC100V～360V

Industrial Reliability: Designed for continuous operation in demanding industrial environments with comprehensive protection features including overspeed, danger, and reverse alarm signals.
