Rotational Speed Sensor
Created with Pixso.

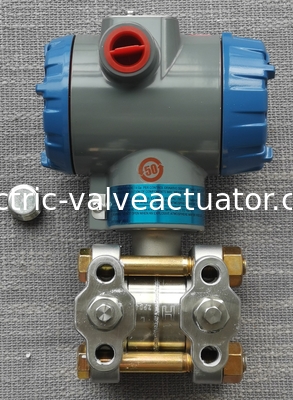

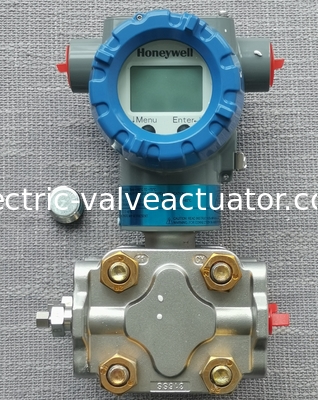

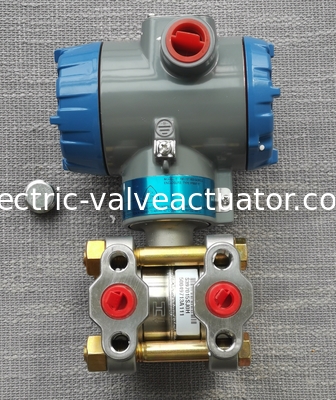

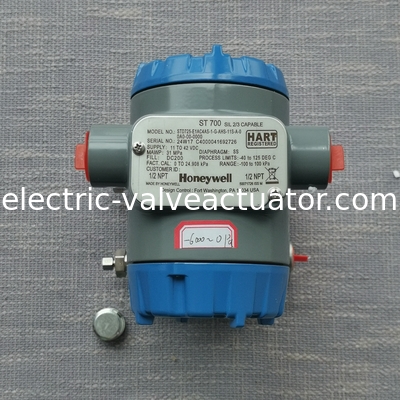

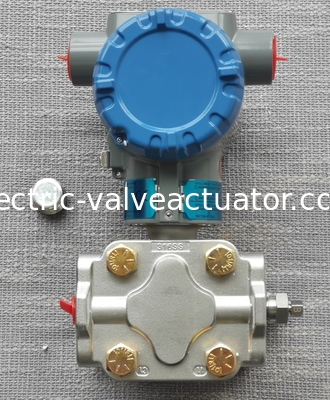

New Original Honeywell  STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Pressure Transmitte

New Original Honeywell  STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Pressure Transmitte

New Original Honeywell  STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Pressure Transmitte

Brand Name: Honeywell
Model Number: STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand:
Honeywell
Model:
STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000
Output:
HART/4 To 20 MA
Current And Voltage:
18-30 VAC/DC; 50/60 Hz, -6000 To 0 Pa
Operating Temperature:
Operating Temperature: 0-50 °C < 1.0% Of Full Scale (FS)
Maximum Operating Pressure:
31 MPa
Filling Fluid:
DC200
Highlight:

New Original Pressure Transmitte

,

Honeywell Pressure Transmitte

,

STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Pressure Transmitte

Product Description

New Original Honeywell   STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Pressure Transmitte

Product Name:

Differential Pressure Transmitter

Model:

STD725-E1AC4AS-1-G-AHS-11S-A-00A0

Customization Supported:

OEM, ODM

Warranty Period:

12 months

Minimum Order Quantity:

1 piece


New Original Honeywell  STD725-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Pressure Transmitte 0

It features an advanced output system that combines HART communication protocol with the industry - standard 4 - 20 mA signal. The HART protocol enables two - way communication, allowing for seamless integration with control systems. This means that not only can it transmit accurate differential pressure measurements, but also relay important diagnostic and configuration information. The 4 - 20 mA analog signal provides a straightforward way to interface with existing instrumentation, ensuring compatibility across a wide range of industrial setups.

 The STD725 - E1AC4AS - 1 - G - AHS - 11S - A - 00A0 is highly versatile in terms of power supply. It can operate on either 18 - 30 VAC or 18 - 30 VDC power sources, with a frequency tolerance of 50/60 Hz. This flexibility makes it suitable for use in various regions and applications, whether in facilities with AC - powered systems or those relying on DC power. Additionally, it has an impressive pressure measurement range, capable of detecting differential pressures from - 6000 Pa to 0 Pa, making it ideal for applications that require monitoring of low - pressure differentials, such as in certain ventilation systems or delicate industrial processes.
