Relay Low Power relay electric relay time relay Synchronous Relay AUXILIARY RELAY(JZ-7J-201, JZ-7J-201B, JZ-7J-203)

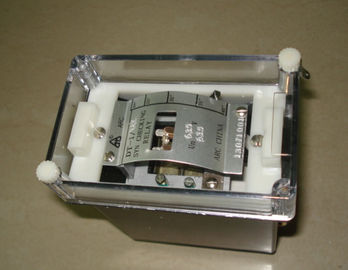

  Low Power Consumption STATIC AUXILIARY RELAY(JZ-7J-201, JZ-7J-201B, JZ-7J-203,JZ-7J-203B, JZ-7J-204B,JZ-7J-212,JZ-7Y-15,JZ-7J-37)

  This series of auxiliary relay is used in many kinds of protection and auto-controled devices. It can enlarges the contact capacity of the protection and control loop.

        The wire of the 100V and 220V normal electromagnetic auxiliary relay is very thin. And there are too many number of turns too. So it has a lot of disadvan-tages such as easy to break, a low reliability, long operating and resetting time.
        This series of auxiliary relay uses the static electronic circuit to control
contacts of multi-sealed import relay closing and opening at the same time.

There are the capability and specialty below:
       1.It uses the high capability sealed relay. So it is moistureproof, dustproof, high reliability and never break wire.
       2.With accurate operate voltage, high resetting ratio, no-chatter, low power consumption, multi-contact operating or resetting at one time(controllable char-acter: 100%).
       3.With light indicating operating and power.
       4.With long electrical life and mechanical life.
       5.With high insulation voltage and endurance voltage. Large capacity of contact and small contact resistance.
       6.High-disturb ability and fit up situation with strong jamming or low quality of power supply.

Model :

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-204)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-204B)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-204K)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-205)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-212)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-220)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-33)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-37)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7Y-15)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-201B)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-203)

JZ-7 SERIALS STATIC AUXILIARY RELAY(JZ-7J-203B)
