| Place of Origin: | China |
| Brand Name: | SWP |
| Model Number: | SWP-T20X-R-1F |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 15 days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |
| Accuracy Class: | 0.5 | Return Difference: | 0.1%FS |
|---|---|---|---|
| Temperature Effect: | ±0.1%/10℃ | Working Voltage: | DC13V~30V |
| Annual Stability: | ±0.2% | Signal Output: | 4~20mA |
| High Light: | electric power rosemount pressure transmitter,20mA rosemount pressure transmitter,20mA differential pressure transmitter |
||

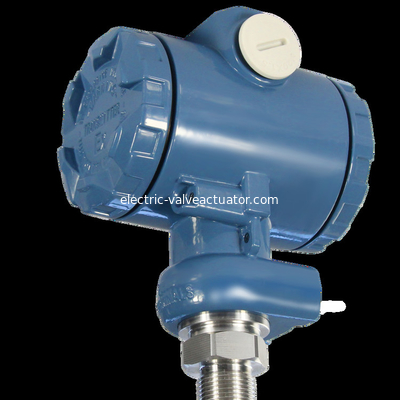

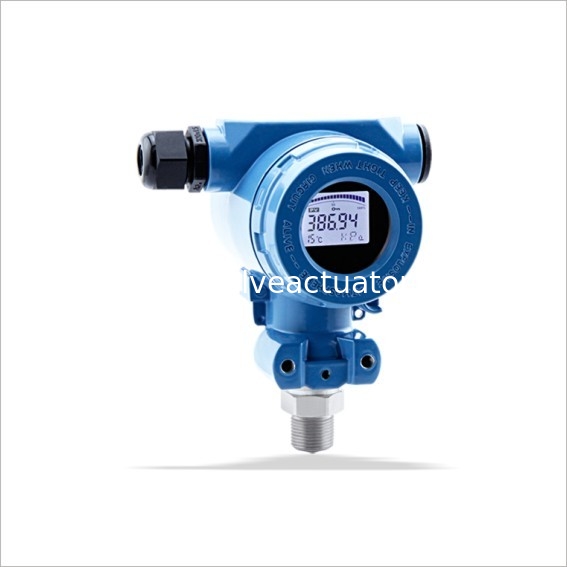

Swp-t20 series economical pressure transmitter digital display 4~20mA output
Swp-t20x series pressure transmitter is assembled through strict process by using international advanced diffused silicon sensor or piezoresistive ceramic sensor, together with high-precision electronic components, so that swp-t20x series pressure transmitter has excellent technical performance. It has strong overload and impact resistance, high stability, and high measurement accuracy. It can be widely used in many industrial fields, such as petroleum, chemical industry, electric power, metallurgy, pharmacy, food, etc., and can adapt to various occasions and media of industrial measurement.
| MODEL |
CODE |
INSTRUCTION |
||||||
| SWP-T20X |
□ |
□□ |
□ |
□ |
□ |
□ |
□ |
Economical pressure transmitter |
| Remote connection mode and material |
R G |
Outer thread G1/2(SS 1Gr18Ni9Ti) Outer thread M20×1.5(SS 1Gr18Ni9Ti) |
||||||
| Seal material |
1F |
Fluororubber |
||||||
| Signal output mode |
2 |
4~20mA 2wire |
||||||
|
Enclosure type |
A |
No field indication for aluminum shell, protection grade IP65 |
||||||
|
Accuracy class |
2 5 9 |
0.2 0.5 special requirements |
||||||
|
Measure range |
Y |
Nonstandard range |
||||||
| Sensor type |
R S |
Ceramic piezoresistance Diffused silicon |
||||||
| Type |
Instruction |
|
Accuracy class |
0.5 |
|
Return difference |
0.1%FS |
| Temperature effect |
±0.1%/10℃ |
|
working voltage |
DC13V~30V |
|
Annual stability |
±0.2% |
| signal output |
4~20mA |
|
Allowable overvoltage |
Range 150% |
| size |
120×60×100max |
|
Maximum pressure |
Range 200% |
|
Allowable temperature |
Environment -20~70℃ environment -20~80℃ |
