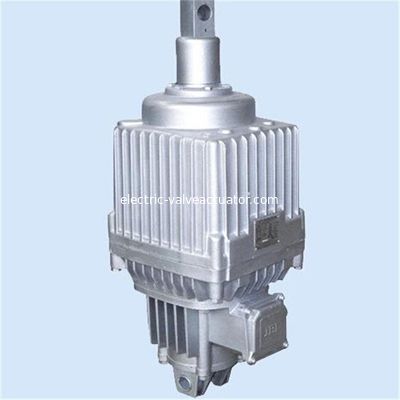

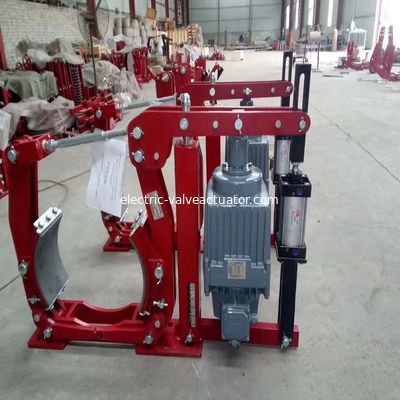

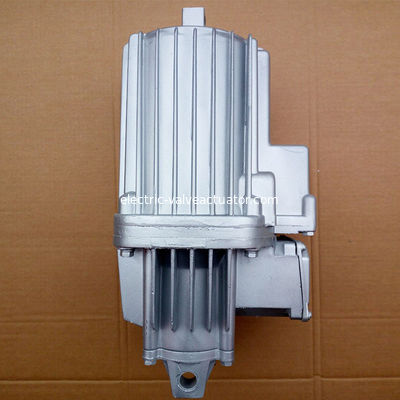

Thruster YT1-90Z/8 match to YW Series of Electro-Hydraulic Drum Brakes

Thruster YT1-90Z/8 match to YW Series of Electro-Hydraulic Drum Brakes

  • Thruster YT1-90Z/8  match to YW Series of Electro-Hydraulic Drum Brakes
  • Thruster YT1-90Z/8  match to YW Series of Electro-Hydraulic Drum Brakes
  • Thruster YT1-90Z/8  match to YW Series of Electro-Hydraulic Drum Brakes
  • Thruster YT1-90Z/8  match to YW Series of Electro-Hydraulic Drum Brakes
Thruster YT1-90Z/8  match to YW Series of Electro-Hydraulic Drum Brakes
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: YW , YT1-90Z/8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Brake Toque: 1600 Mm Reback Distance: 0.8 Mm
Weight: 210 Thruster: YT1-90Z/8
Brake: YWZ-500/90 Ambinet Temperature: -20℃-50℃
High Light:

electro hydraulic actuator

,

electromagnetic brakes

Thruster YT1-90Z/8 match to YW Series of Electro-Hydraulic Drum Brakes

Thruster YT1-90Z/8  match to YW Series of Electro-Hydraulic Drum Brakes 0







Thruster match to Brake
Brake Thruster brake torque (nm)(nm)
YWZ-100/18 YT1-18ZB/2 40
YWZ-150/25 YT1-25ZB/4 100
YWZ-200/25 YT1-25ZB/4 200
YWZ-300/25 YT1-25ZC/4 320
YWZ-300/45 YT1-45Z/6 630
YWZ-400/45 YT1-45Z/6 1000
YWZ-400/90 YT1-90Z/8 1600
YWZ-400/125 YT1-125Z/10 2200
YWZ-500/90 YT1-90Z/8 2500
YWZ-500/125 YT1-125Z/10 2650
YWZ-500/180 YT1-180Z/10 3000
YWZ-600/90 YT1-90Z/8 3200
YWZ-600/180 YT1-180Z/12 5000
YWZ-700/180 YT1-180Z/12 8000
YWZ-800/180 YT1-180Z/12 10000
YWZ-800/320 YT1-320Z/12

12500




Conditions of use:
Ambient temperature -20 ℃ ~ ±50 ℃
Relative temperature: should not be greater than 90%
The surrounding environment may not flammable, explosive and corrosive gases
Using the locations of the altitude with GB755-2000
Outdoor rain erosion or corrosive gas and medium should be used in anticorrosion of failure products.

Please contact our company to get more products details .
