ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m Ed121/6 match to Electro Hydraulic Thruster Brake

ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m Ed121/6 match to Electro Hydraulic Thruster Brake

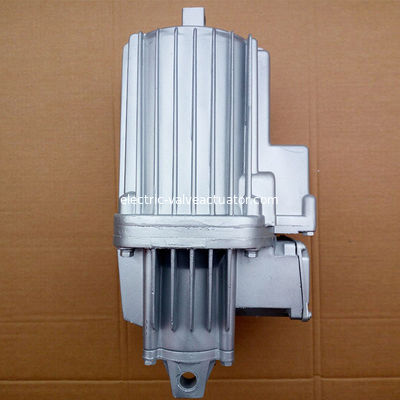

  • ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake

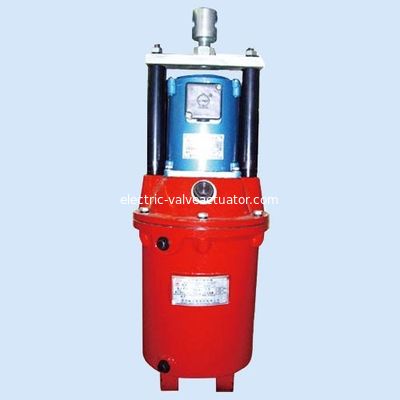

  • ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake

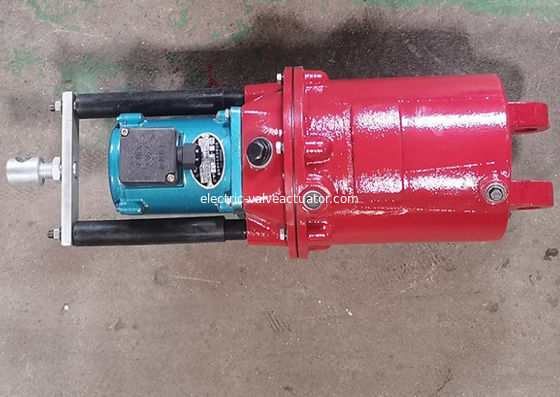

  • ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake

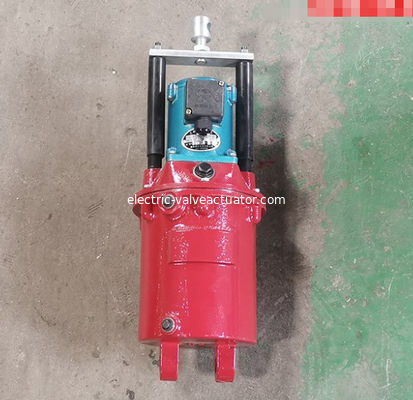

  • ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake

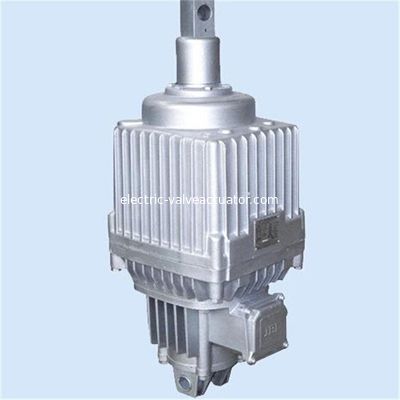

  • ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake

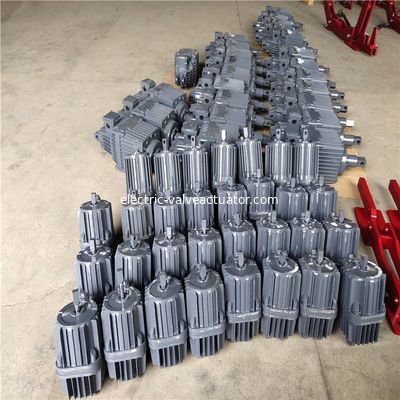

  • ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake
ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake
Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: ED series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Model: ED Series Material: Casting Iron
Voltage: 220v , 380v Use To: Electro Hydraulic Brake
High Light:

electro hydraulic actuator

,

electromagnetic brakes

ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m Ed121/6 match to Electro Hydraulic Thruster Brake



The electric hydraulic thruster consists of two parts, the driving motor and the body (centrifugal pump). The body part is composed of cover, cylinder, piston, impeller and rotating shaft.

When energized, the motor drives the transmission shaft and the impeller on the rotating shaft to rotate, generating pressure in the piston. Under the influence of this pressure, the oil is sucked from the upper part of the piston to the lower part of the piston, forcing the piston, the push rod and beam fixed on it to rise rapidly. Mechanical motion is generated by mechanically compressing the load spring (pusher or brake with load spring) through the lever.

When the power is cut off, the impeller stops rotating, and the piston drops rapidly under the action of load spring force and its own gravity, forcing the oil to flow back into the upper part of the piston. At this time, it still returns to its original position through the lever mechanism.

Electric hydraulic thruster is often used with brake frame for braking of various transmission devices.

The company's products are applied in domestic lifting and transportation, port machinery, metallurgical machinery, railway machinery, hydraulic machinery, mining machinery and other industries.

ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake 0



ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake 1

ED series thruster Ed23/5 , Ed30/5, Ed50/6 , Ed80/6m  Ed121/6 match to Electro Hydraulic Thruster Brake 2



Brake Thruster Brake wheel diameter brake torque (nm) reback distance (mm)
YWZ9-160/E23 Ed23/5 160 80-160 1
YWZ9-200/E23 Ed23/5 200 112-200 1
YWZ9-200/E30 Ed30/5 140-315
YWZ9-250/E23 Ed23/5 250 140-250 1
YWZ9-250/E30 Ed30/5 180-315
YWZ9-250/E50 Ed50/6 315-500
YWZ9-300/E23 Ed23/5 300 180-280 1.25
YWZ9-300/E30 Ed30/5 250-400
YWZ9-300/E50 Ed50/6 400-630
YWZ9-300/E80 Ed80/6 630-1000
YWZ9-315/E23 Ed23/5 315 180-280 125
YWZ9-315/E30 Ed30/5 250-400
YWZ9-315/E50 Ed50/6 400-630
YWZ9-315/E80 Ed80/6 630-1000
YWZ9-500/E50 Ed50/6 500 450-1000 1.25
YWZ9-500/E80 Ed80/6 800-1600
YWZ9-500/E121 Ed121/6 1120-2500
YWZ9-500/E201 Ed201/6 2000-4000
YWZ9-600/E121 Ed121/6 600 1800-2800 1.6
YWZ9-600/E201 Ed201/6 2500-4500
YWZ9-600/E301 Ed301/6 4000-6500
YWZ9-630/E121 Ed121/6 630 1800-3150 1.6
YWZ9-630/E201 Ed201/6 2500-5000
YWZ9-630/E301 Ed301/6 4000-7100



Please contact our company to get more products details .
