PA66 Aluminum Integrated Protection Relay WISCOM WDZ-440 For Low Voltage

PA66 Aluminum Integrated Protection Relay WISCOM WDZ-440 For Low Voltage

  • PA66 Aluminum Integrated Protection Relay WISCOM WDZ-440 For Low Voltage
PA66 Aluminum Integrated Protection Relay WISCOM WDZ-440 For Low Voltage
Product Details:
Place of Origin: China
Brand Name: WISCOM
Model Number: positioner
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Contact Now
Detailed Product Description
Analog Output: 4~20mA Usage: Protective,Auto
Theory: Electromagnetic Relay Application: Motor,transformer
Material: Iron,Aluminum,PA66 O Nory Frequency: 50Hz/60Hz
High Light:

PA66 Aluminum Integrated Protection Relay

,

Electromagnetic Integrated Protection Relay

,

Low Voltage Electromagnetic Protection Relay

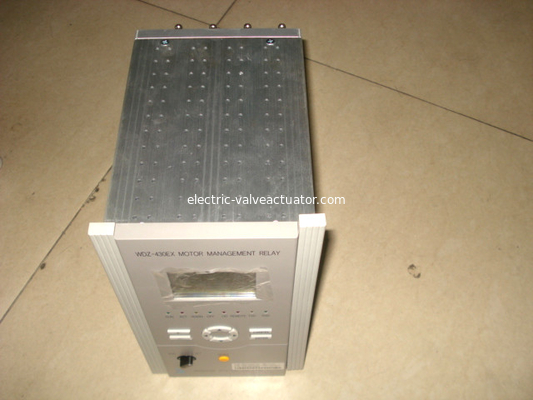

WISCOM protection relay , WDZ-430EX motor integrated protection and measure device



Wdz-400 series includes the following models:

wdz-410 line integrated

Protection measurement and control device

wdz-430 motor integrated protection measurement and control device

wdz-431 motor differential protection device

wdz-440 low voltage transformer integrated protection measurement and control device





Wdz-440ex microcomputer protection function configuration is as follows:



1. Overcurrent (quick break) protection of section I (with directional locking, low-voltage locking, negative pressure locking and fixed value doubling)



2. Overcurrent (* * * * quick break) protection of section II (with directional locking, low-voltage locking, negative pressure locking and fixed value doubling)



3. Overcurrent (definite time overcurrent) protection of section III (with direction locking, low voltage locking, negative pressure locking and protection exit)



4. Inverse time overcurrent protection (four characteristic curves of IEC standard inverse time)



5. Rear acceleration protection



6. Overload protection



7. Negative sequence current protection



8. Zero sequence current protection



9. Single phase grounding line selection protection (fifth harmonic criterion can be selected)



10. Overvoltage protection



11. Low voltage protection



12. Voltage loss protection



13. Negative sequence voltage protection



14. Air cooling control protection



15. Zero sequence voltage protection



16. Low cycle load shedding protection (with voltage lockout, slip lockout and under current lockout)



17. Low voltage disconnection protection (with slip locking and under current locking)



18. Reclosing protection (with no voltage detection and synchronous detection)



19. Standby automatic switching protection (with automatic switching and automatic recovery, no voltage and no current)



20. Overheating protection



21. Reverse power protection



22. Protection for too long startup time



23. Definite time limit IX overcurrent protection



24. Inverse time IX overcurrent protection (four characteristic curves of IEC standard inverse time)



25. Protection option: motor parameters (Note 1)



26. Protection option: PT control (Note 2)



27. Protection option: Pt parallel switching (Note 3)



28. Non electric quantity protection 1 ~ 8 (Note 4)



Wdz-440ex microcomputer protection environmental conditions



Normal temperature: - 10 ℃ ~ 55 ℃



Limit temperature: - 30 ℃ ~ 70 ℃



Storage temperature: - 40 ℃ ~ 85 ℃



Relative humidity: ≤ 95%, no condensation



Atmospheric pressure: 80 ~ 110kpa
