| Place of Origin: | China |
| Brand Name: | JIANGLING |
| Model Number: | CS-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box packing |
| Delivery Time: | 15 days after signing the contract |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets |
| Measurement Range: | 0～20000 Pulse / Second | Material: | Stain Steel |
|---|---|---|---|
| Installation Distance: | ≤1mm | Working Temperature: | -40～+120℃ |
| Relative Humidity: | ≤90% | ||
| High Light: | 20000pulse/S Rotational Speed Sensor,1mm Installation Rotational Speed Sensor,Stain Steel Magnetic Speed Sensor |
||

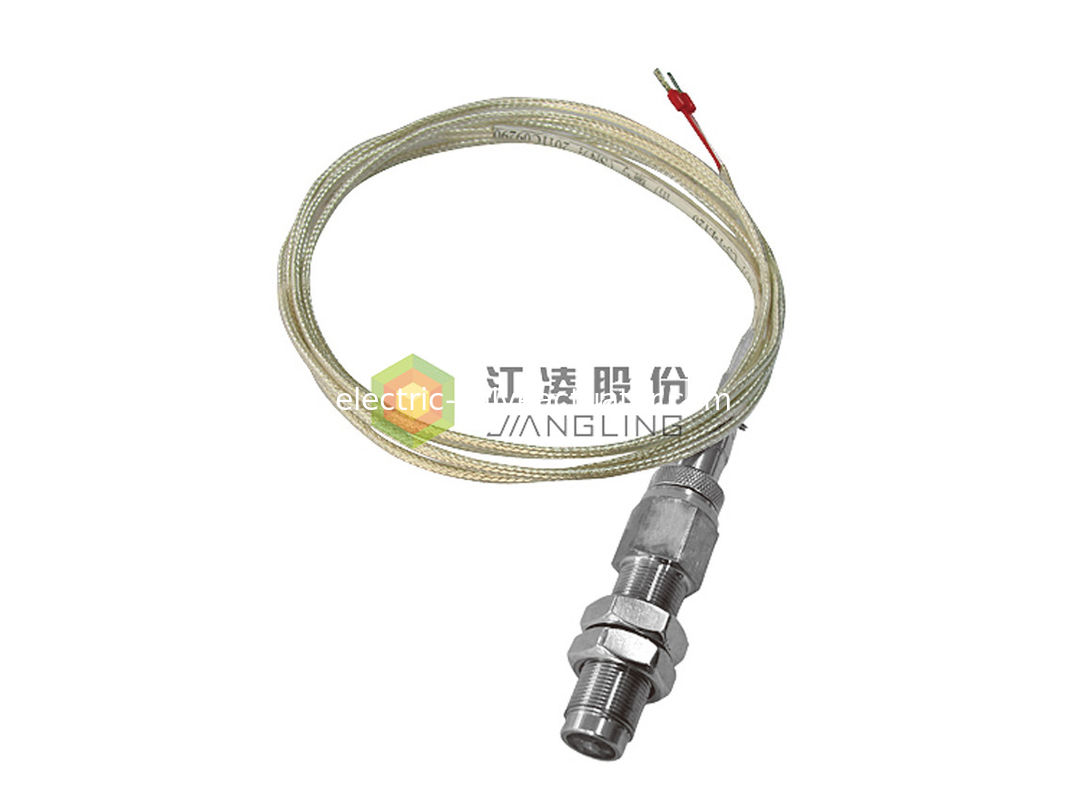

CS-1 speed sensor
System description
• Magnetic speed sensor
• No need to connect to external power
Technical parameters
| Order No. | CS-1 speed sensor |
| Measurement range | 0～20000 pulse / second |
| Installation distance | ≤1mm |
| Environment temperature | -40～+120℃ relative humidity : ≤90% |
| Thread specification | To the order guide |
| Power supply | － |
Order Guide:
| Order No. | Probe type A | Probe insert depth B | Cable length C | Expand D |
|
CS-1- speed sensor |
1: M10×1 2: M16×1 3: M18×1 n:special requirement |
0: 00mm* 1: 10mm 2: 20mm 3: 30mm 4: 40mm n: special requirement |
1: 20mm 2: 40mm 3: 60mm* 4: 80mm 5: 100mm 6: 120mm 7: 160mm 8: 180mm n: special requirement |
1: 2m metal shielding 2: 5m metal shielding 3: 8m metal shielding 4: 10m metal shielding 5: 2m No metal shielding* 6: 5m No metal shielding 7: 8m No metal shielding 8: 10m No metal shielding n: special requirement |
Note : special requirements for selection to describe specific requirements .
