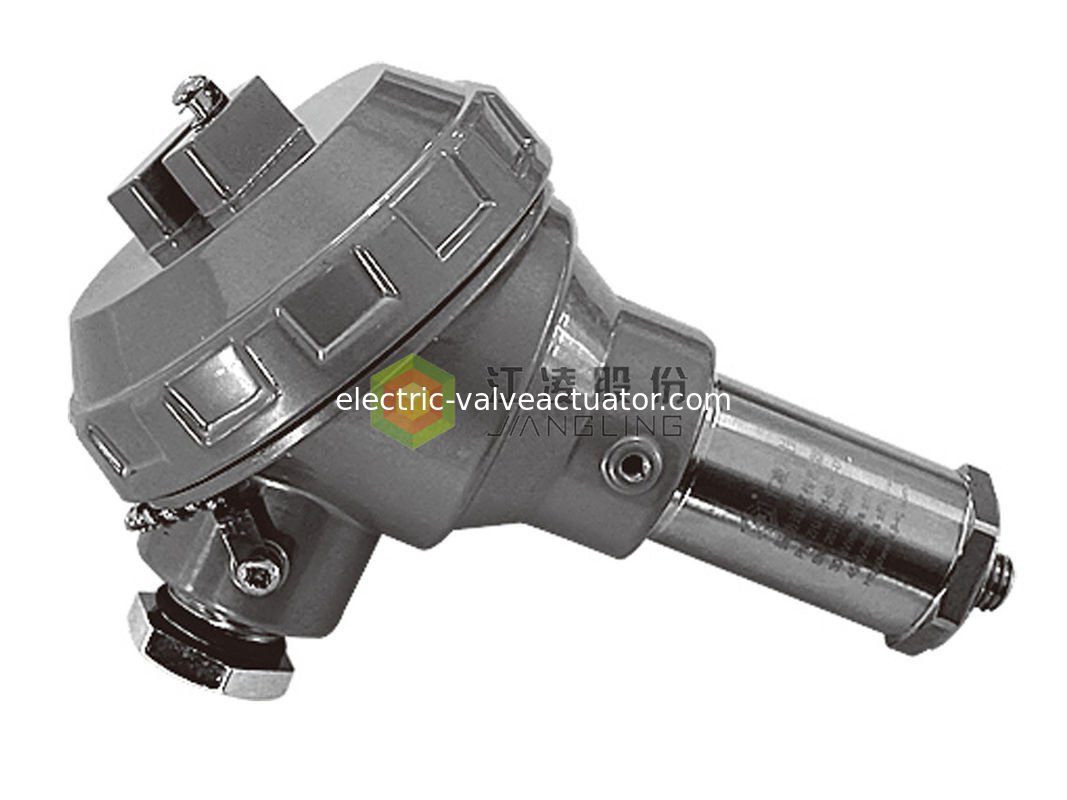

Exd II CT6 DC24V Bearing Vibration Transmitter 20mA JM-B-35/E

Name: Exd II CT6 DC24V Bearing Vibration Transmitter 20mA JM-B-35/E
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: JM-B-35/E
Price: 1.00 USD
Availability: InStock

Brand Name:	JIANGLING
Model Number:	JM-B-35/E
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	1000sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Explosion - Proof Grade:

Exd II CT6

Outline Dimension:

100×155mm

Current Output:

4～20mA

Switching Value:

DC+24V

Working Temperature:

-10～65℃

Relative Humidity:

≤95%

Packaging Details:

Wooden box packing

Supply Ability:

1000sets

Highlight:

Exd II CT6 Bearing Vibration Transmitter

DC24V Bearing Vibration Transmitter

20mA Explosion Proof Vibration Transmitter

Product Description

JM-B-35/E Explosion- proof type integrated bearing vibration transmitter

System description

• Explosion - proof grade : Exd II CT6
• two wire system
• Explosion proof enclosure wiring design

Technical parameters

Order No.	Description
Measure range	To the order guide
Outline dimension	100×155(W×H) UNIT: mm
Current output	4～20mA(load≤1KΩ)
Switching value	DC24V
Power supply voltage	Working temperature : -10～65℃, Relative humidity : ≤95%

Order Guide:

Order No.

The selection of range A

Install screw B

Cable selection C

Expand D

JM-B-35/E－
explosion-proof type integrated bearing vibration transmitter

1:10.0mm/s 2:20.0mm/s*
3:40.0mm/s 4:50.0mm/s
5:100μm 6:200μm
7:400μm 8:500μm
n:special requirement

1:M10×1.0×10(L)
2:M10×1.5×10(L)*
n:special requirement

0:NO

Note :The specific requirements should be provided for special model selection
