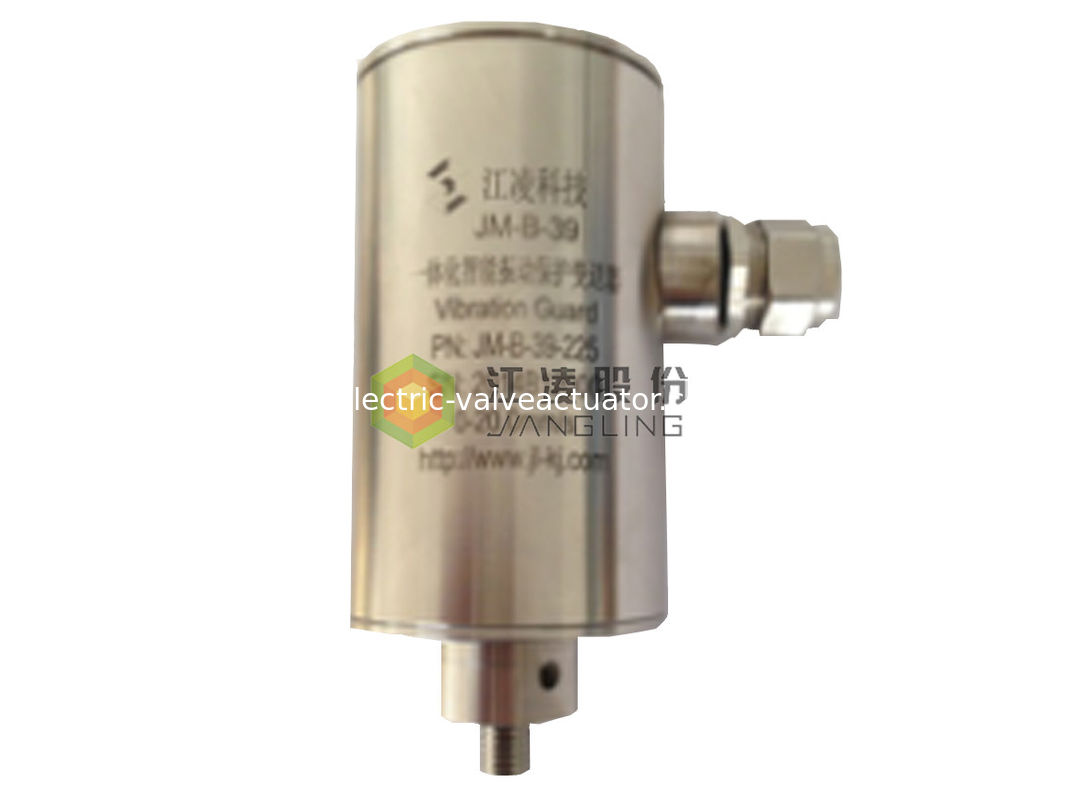

JM-B-39 Integrated intelligent vibration protection transmitter

一,General

JM-B-39 integrated intelligent vibration protection transmitter is an integrated, intelligent, high-protection vibration protection transmitter. It can provide 4-20 mA current signal output, which is proportional to the vibration speed or amplitude of the bearing bush or bearing seat of the rotating machinery. At the same time, it can also provide two-level switch output, TDM signal output, etc. It automatically collects vibration signals on the machine and uses the converted analog signals in PLC, DCS and DEH systems, etc.

二,Function

1. With a high degree of intelligence, the parameter setting realizes the board operation.

2. It is highly integrated, easy to install and debug, suitable for long-term online monitoring, and does not require on-site maintenance.

3. Mainly used to measure the vibration of rotating machinery (ie, tile vibration).

4. Secondary alarm switch output.

5. With 4-20mA current analog output.

6. With TDM interface output.

7. Set the alarm and dangerous values arbitrarily.

8. With self-check function.

9. With alarm self-locking function.

10. With large value automatic memory and query functions.

11. It is suitable for use in sites requiring explosion protection and high protection.

三,Technical Parameters

1． Display mode: LED digital tube display

2． Measurement channel: single channel

3． Measurement range :0 ~ 20.0mm/s (default),0 ~ 100.0mm/s can be customized within the scope

4． Sensitivity: 0.0 to 20.0 mm/s (default) ±5%, broadband rms (root mean square)

[4mA is equal to 0.0 mm/s and 20mA is equal to 20.0 mm/s (default)]

5． measurement accuracy :±1%FS @25℃

6． Frequency Range:10Hz ~ 1KHz

7． output port :(1)current output :4～20mA(load ≤1KΩ)

(2)Secondary switch output :2A 30VDC or 0.5A 125VAC

(3)TDM connector output

(4)RS485 Communication interface output (optional)

8． working temperature :-25℃ ~ +70℃

9． power supply :18 ~ 30 Vdc (typical 24Vdc)

10．Protection level:IP66

11．Power consumption : << span="">8W

12．Weight :0.5 kg

13．Dimension :60 mm(DIA)× 113 mm(H)

14．Material : SS

15．Mounting thread :M10 Internal threaded hole

四,Order Guide:

Order No.	Measurement range A	Mounting scew B	Expand cable C
JM-B-39-	1: 10.0mm/s 2: 20.0mm/s * 3: 40.0mm/s 4: 50.0mm/s 5: 25.0mm/s 6: 30.0mm/s n: special requirement	1:M10×1.0×10(L) 2:M10×1.5×10(L)* n:special requirement	1: 2m metal shielding 2: 5m metal shielding 3:10m metal shielding 4:2m non metal shielding 5: 5m no metal shielding * 6:10m non metal shielding n:special requirement

Note :The specific requirements should be provided for special model selection
