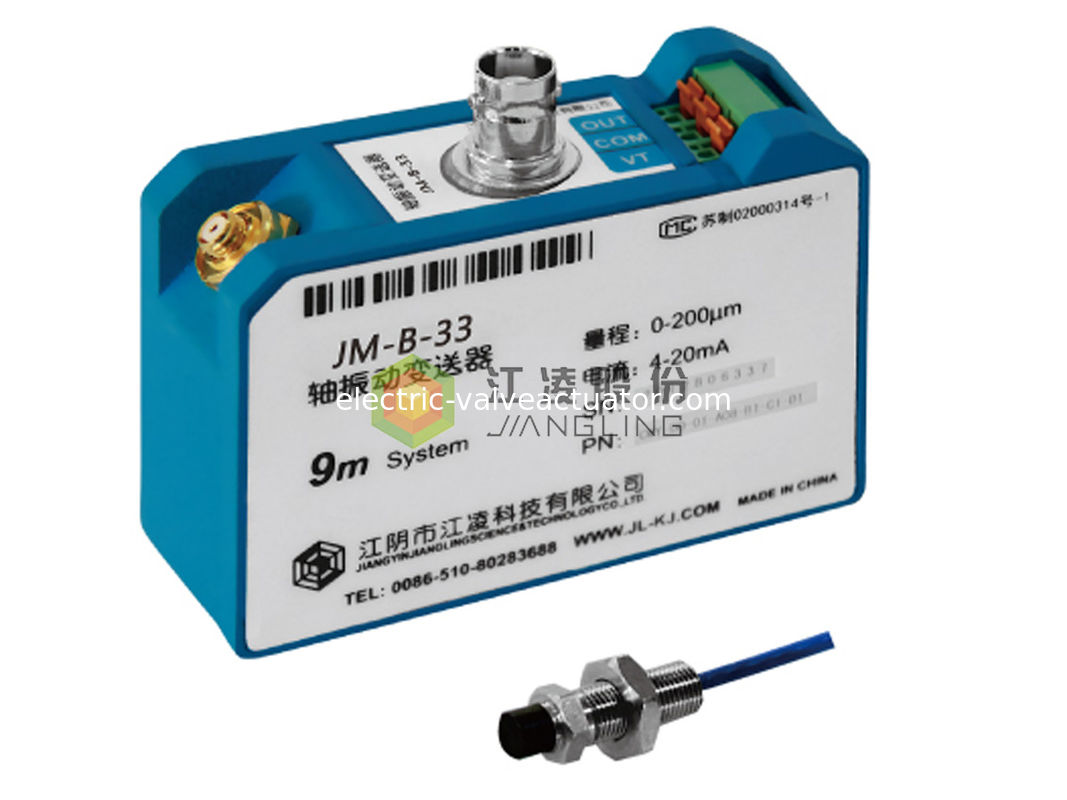

Name: AC250V 20mA Shaft Vibration Transmitter 35mm Guide Rail JM-B-33
Brand: OEM
SKU: JM-B-33
Rating: 5 (114 reviews)

Home Products Rotational Speed Sensor

AC250V 20mA Shaft Vibration Transmitter 35mm Guide Rail JM-B-33

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	JM-B-33

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Delivery Time:	15 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

Contact Now

Detailed Product Description

Outline Dimension:	88mm×31mm×70mm	Current Output:	4～20mA
Switching Value:	DC27V/2A Or AC250V/5A	Power Supply Voltage:	DC+24V
Working Temperature:	-10～65℃	Relative Humidity:	≤85%
High Light:	20mA Shaft Vibration Transmitter , AC250V Shaft Vibration Transmitter , 35mm Guide Rail Vibration Transmitter

JM-B-33 Integrated shaft vibration transmitter

Sytem description

• DIN35mm guide rail installation
• Removable installed base

Technical parameters

Order No.	Description
Measure range	To the order guide
Outline dimension	88mm×31mm×70mm(W×H×D) UNIT: mm
Current output	4～20mA(load ≤1KΩ)
Switching value	DC+24V
Environment temperature	Working temperature : -10～65℃, Relative humidity : ≤85%

Order Guide:

Order No.

Probe and thread specification A

The selection of range B

The screw thread length C

The total length of screw D

The probe cable / extension cable selection E

Explosion proof requirements F

Probe installation way G

JM-B-33-

Integrated shaft vibration transmitter

1:the probe specifications φ5mm ,
thread side M8×1.0mm
2:probe size φ5mm ,
thread size M10×1.0mm
3:probe size φ8mm ,
thread size M10×1.0mm*
n:special requirements

1:100μm
2:200μm*
3:400μm
4:500μm
n:special requirements

1:5mm*
2:10mm
3:15mm
4:20mm
n:special requirements

1:30mm
2:40mm
3:50mm*
4:60mm
n:special requirements

1:1m+4m metal shielding
2:1m+4m non metal shielding*
3:0.5m+4.5m metal shielding
4:0.5m+4.5m non metal shielding
5:1m+8mmetal shielding
6:1m+8m non metal shielding
7:0.5m+8.5m metal shielding
8:0.5m+8.5m non metal shielding

1:explosion proof
2:no explosion proof *

1:general *
2:the installation

Note :The specific requirements should be provided for special model selection
