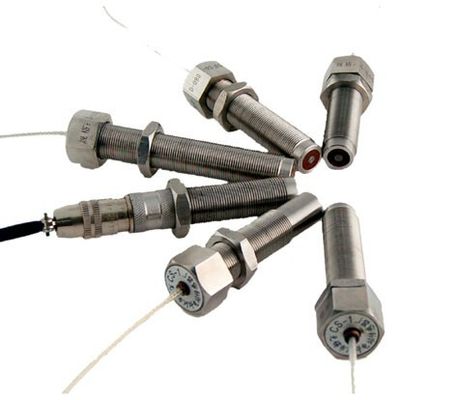

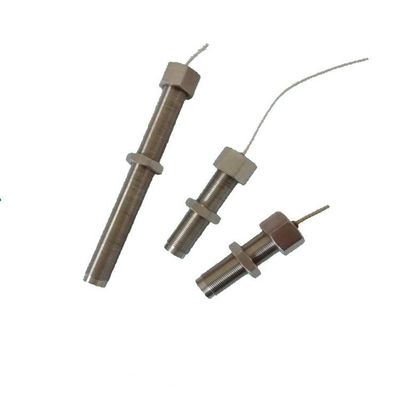

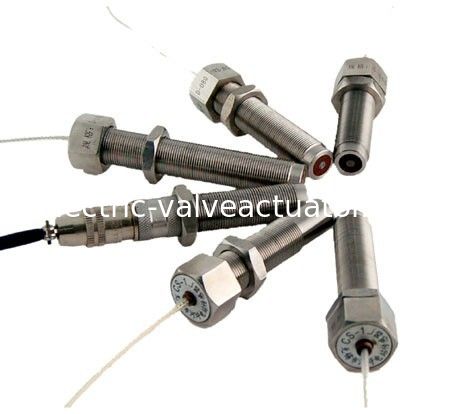

The CS-1 series magnetoelectric speed sensor uses the principle of electromagnetic induction to convert the input rotation speed into the induced electric potential output in the coil.
It directly converts the mechanical energy of the object under test into electrical signal output, no external power supply is required when working, and the signal is stable and reliable. It is small in size and simple in structure, and can be used in various harsh environments such as water, oil, steam, and humidity. It is widely used in the measurement and control of the shaft speed of various rotating machinery such as water pumps and steam turbines.
It is used for speed monitoring and control of steam turbines, water turbines, and various rotating machinery. Main performance parameters  Resistance: low resistance (250Ω), high resistance (500Ω) ±10%;  insulation resistance: ≥500MΩ;  lead length: 2 meters;  working temperature: normal temperature type -40℃-120℃; resistant Temperature type -40℃-240℃ Output signal: (The following is 500Ω sensor test data) Speed ​​1000 rpm, output greater than 5Vp-p; Speed ​​2000 rpm, output greater than 10Vp-p; Speed ​​3000 rpm, The output is greater than 15Vp-p;  Choose matching tooth profile: involute tooth profile. (Gear modulus: 2-4, tooth width b is greater than 5mm) d da pm= = = h=2.25×m (m: modulus z: number of teeth p: number of nodes) Z z+2 π Associated products  3C-1 Smart tachometer .
