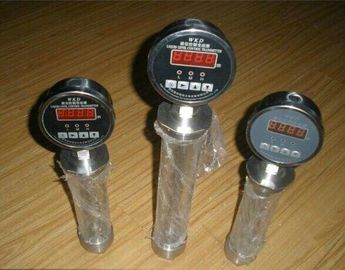

XIAN JIANGHE WKD flow transmitter controller , level control transmitter intergrated with measurement

Overview
WKD liquid level control transmitter is to measure the liquid level of imported micro range dry ceramic pressure sensor. The instrument in measurement, display, remote alarm, as a whole, the liquid level can be converted into a standard signal 4~20mA current signal, and can send on the upper limit, lower limit of three alarm signal, the alarm value of the full range of adjustable for liquid level measurement, bearing and back to the tank system.


Technical parameters
In the measuring range of 0~2 meters
In the power supply voltage: DC general AC85~265V, DC110~340 or DC24V, in order to determine
- parameter display: four LED display window settings and measuring parameters of 3LED indicator
- output mode: 3LED indicator alarm action, 1 Analog, 3 way switch
- output current: 4~20mA < 525 ohm load resistance
Relay contact capacity: 1A/AC250V - 3 group relay set
- Accuracy: + 0.5% years drift < + 0.2FS
- Power: 20W
