Quectel FCU760K-NL Wi-Fi 6 & BLE 5.4 LCC Module | High Performance Wireless Connectivity Solution

Name: Quectel FCU760K-NL Wi-Fi 6 & BLE 5.4 LCC Module | High Performance Wireless Connectivity Solution
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: FCU760K-NL
Price: 210.00 USD
Availability: InStock

Brand Name:	Quectel
Model Number:	FCU760K-NL
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Packaging Details:

New original box

Highlight:

Quectel FCU760K-NL Wi-Fi 6 module

BLE 5.4 LCC wireless module

high performance wireless connectivity solution

Product Description

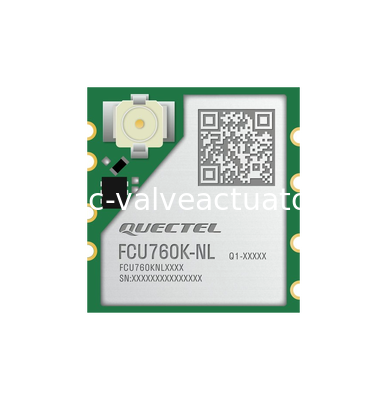

Quectel FCU760K-NL Wi-Fi 6 & BLE 5.4 LCC Module

Product Overview

The FCU760K-NL is a high-performance Wi-Fi 6 and BLE 5.4 module in an LCC package from Quectel, designed for WLAN and Bluetooth connectivity. This versatile wireless connectivity module brings dependable networking and modern short-range communication capabilities to a wide range of intelligent electronic products.

Key Features

2.4 GHz/5 GHz Wi-Fi bands and BLE 5.4
RF coaxial connector (1st generation) and pin-type antenna interface (optional)
USB 2.0 interface offering higher data transfer rates and lower power consumption
LCC package for easy soldering
Faster time-to-market: streamlined design minimizes design-in time and development effort
Wide operating temperature range: -20°C to +80°C
Compliant with IEEE 802.11a/b/g/n/ac/ax protocols
Supports data rates up to 286.8 Mbps (11ax MCS 11 with 40 MHz channels)
Ultra-compact form factor: 13.0 mm × 12.2 mm × 2.0 mm

Technical Specifications

Wireless Standards: Wi-Fi 6 (802.11ax), Bluetooth 5.4
Interface: USB 2.0
Package: LCC (Land Grid Array)
Dimensions: 13.0 mm × 12.2 mm × 2.0 mm
Operating Temperature: -20°C to +80°C

Design Advantages

The SMT design makes the FCU760K-NL an excellent choice for durable and robust applications. The low-profile LCC package allows for easy integration into space-limited devices while ensuring reliable connectivity. Advanced packaging features an integrated shield, superior thermal performance, and durable laser-engraved labeling, enabling the module to meet rigorous cost and efficiency demands of large-scale automated manufacturing.

Application Benefits

By integrating essential wireless functions into a compact module, the FCU760K-NL helps simplify product architecture while allowing manufacturers to focus on application development and user experience. This approach can shorten development cycles and direct engineering resources toward software, system integration, and application-specific features.

Target Applications

The module is well-suited for smart devices, industrial equipment, automation systems, consumer electronics, gateways, and other connected applications. Its compact design and wide operating temperature range make it suitable for diverse commercial and industrial applications where flexible connectivity and space constraints are important considerations.
