Fluke 1524 Reference Thermometer | Industrial Temperature Calibration

Fluke 1524 Reference Thermometer | Industrial Temperature Calibration

Fluke 1524 Reference Thermometer | Industrial Temperature Calibration

Brand Name:	Fluke
Model Number:	1524·
MOQ:	1
Price:	Negotistical

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Input Channels:

2

Packaging Details:

New original box

Product Description

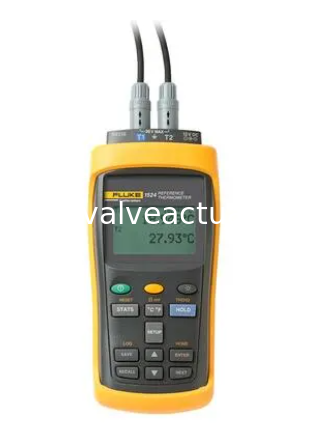

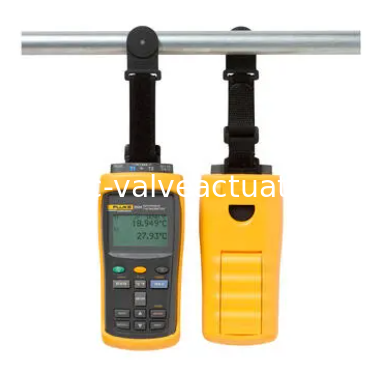

Fluke 1524 Reference Thermometer | Industrial Temperature Calibration

The Fluke 1524 Reference Thermometer delivers precision industrial temperature calibration with advanced measurement capabilities and comprehensive data recording.

Key Specifications

Specification	Details
Input Channels	2
Data Recording	15,000 measurements with date and time stamps; 25 readings and statistics
Sampling Interval (Standard)	1 second
Sampling Interval (Fast Mode)	0.3 seconds (See technical manual for details)
Sensor Types	PRT, RTD, Thermistor, and Thermocouple
Thermocouple Types	C, E, J, K, L, M, N, T, U, B, R, S
Operating Temperature	-10 ºC to 60 ºC (Optimal accuracy range 13 ºC to 33 ºC)
Power Requirements	3 AA alkaline batteries
Dimensions	96 x 200 x 47 mm (3.75 x 7.9 x 1.86 in)
Weight	0.65 kg (1.4 lb)

Technical Performance Specifications

Ambient Conditions for Optimal Accuracy: 13 °C to 33 °C

Millivolt Range and Accuracy: -10 mV to 75 mV ± (0.005% + 5 μV)

Resistance Range and Accuracy: 0 Ω to 400 Ω ±(0.004% + 0.002 Ω)
200 Ω to 50 kΩ ±(0.01% + 0.5 Ω)
50 kΩ to 500 kΩ ± (0.03%)

Temperature Coefficient, Voltage: (-10 °C to 13 °C, +33 °C to 60 °C) ±(0.001%/ °C + 1 μV/ °C)

Temperature Coefficient, Resistance: 0.0008%/ °C + 0.0004 Ω (0 Ω to 400 Ω)
0.002%/ °C + 0.1 Ω (0 Ω to 50 kΩ)
0.06%/ °C + 0.1 Ω (50 kΩ to 500 kΩ)

Excitation Current, Resistance: 1 mA (0 Ω to 400 Ω)
10 μA (0 Ω to 50 kΩ)
2 μA (50 Ω to 500 kΩ)
