SEMIKRON SKKT460/22E H4 2300V IGBT Module High-Performance Insulated Gate Bipolar Transistor

Name: SEMIKRON SKKT460/22E H4 2300V IGBT Module High-Performance Insulated Gate Bipolar Transistor
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SKKT460/22E
Price: 210.00 USD
Availability: InStock

Brand Name:	SEMIKRON
Model Number:	SKKT460/22E
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Collector Voltage:

2200 V

Continuous Collector Current:

460 A

Pulse Current:

920 A

Leakage Current:

5 MA

Packaging Details:

New original box

Product Description

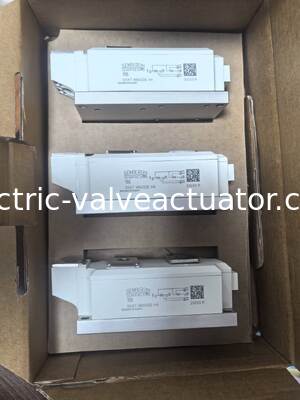

SEMIKRON SKKT460/22E H4 2300V IGBT Module

The SEMIKRON SKKT460/22E H4 is a high-performance Insulated Gate Bipolar Transistor (IGBT) module that combines MOSFET high input impedance with bipolar transistor low conduction loss for precise, efficient power control in demanding industrial applications.

Key Specifications

Parameter	Value
Maximum Voltage Rating	2300V
Continuous Current Capacity	460A (at 85°C case temperature)
Operating Temperature Range	-40°C to 125°C (junction and storage)
Housing Type	SEMIPACK® 5 with aluminum nitride ceramic insulated metal baseplate

Technical Features

Fast and flexible switching with low switching losses
Excellent surge overload capability
High insulation voltage for harsh high-voltage environments
Precious metal pressure contacts for long-term reliability
Efficient heat dissipation design
UL-recognized design (File No. E63532)

Applications

This IGBT module is ideal for AC motor soft starters, input converters for AC inverter drives, DC motor control (machine tools), temperature control for ovens and chemical processes, power regulators, welding equipment, and renewable energy conversion systems.

Compact, durable, and easy to integrate, the SEMIKRON SKKT460/22E H4 IGBT module delivers consistent, efficient power control backed by SEMIKRON's renowned quality—ideal for industrial systems demanding uncompromising performance and flexibility.
