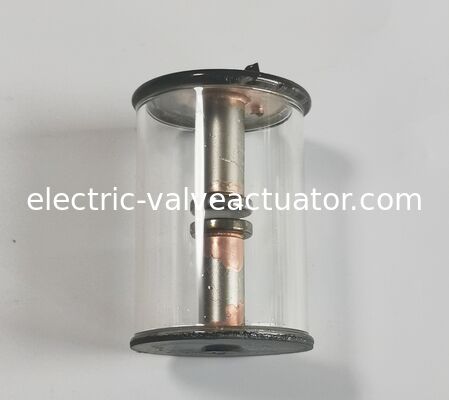

High Voltage Spark Gap for Boiler Ignition System

Brand Name:	OEM
Model Number:	XDZ series
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Wooden box packing

Supply Ability:

500

Highlight:

High Voltage Spark Gap boiler ignition

Ignition System spark gap component

Boiler ignition high performance spark

Product Description

High Voltage Spark Gap for Boiler Ignition System

Standard Type Soft Rod Explosion Proof High Energy Igniting Gun XDZ-1R-l/d B 600～1400V

Product Overview

High energy ignition device that uses DC voltage input from ignition cable to discharge and form high energy electric sparks at the head.

Technical Advantages

Low ignition voltage
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Applications

Used as assembly component for XDH high-energy ignition devices.

Product Models and Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table, code "l" represents igniting gun length in mm
② In the table, "d" represents igniting gun diameter with 14mm, 16mm, 18mm series available
③ Custom designs and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250
