Boiler Ignition System High Energy Ignitor High Performance Ignition System Flame Monitoring

Name: Boiler Ignition System High Energy Ignitor High Performance Ignition System Flame Monitoring
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: XDZ-1
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	XDZ-1
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

China

Voltage:

2500V

Energy:

20J

Spark Frequence:

12-14times /S

Frame Size:

300*200*120

Thread:

M18*1.0 M18*1.5 M27*1.5

Temperature:

1300℃

Rod Dia:

Φ12、Φ16、Φ18

Packaging Details:

Wooden box packing

Supply Ability:

200

Highlight:

high energy boiler ignitor

flame monitoring ignition system

high performance boiler ignition

Product Description

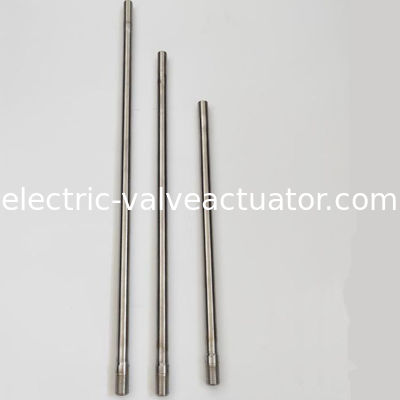

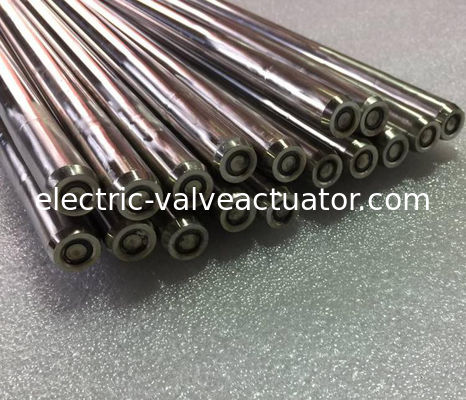

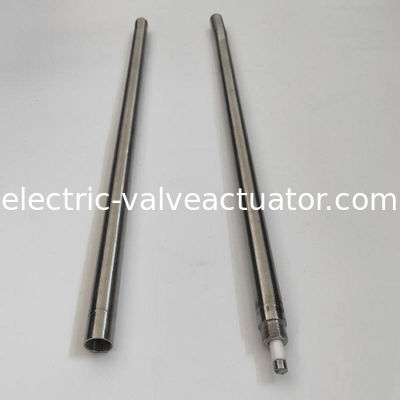

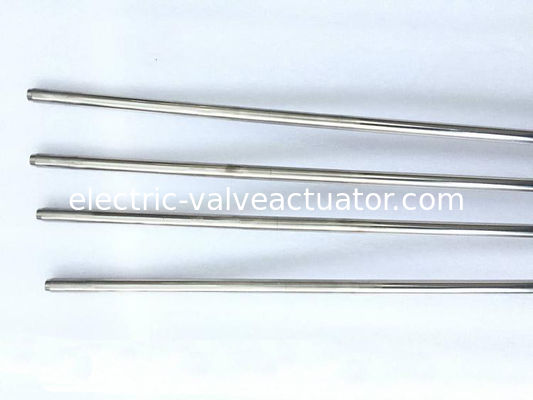

Boiler Ignition System High Energy Ignitor

High Performance Ignition System with Flame Monitoring

Portable High Performance Ignition System Heat Box for XDH High-Energy Ignition Device Assembly. Compatible with DC 12V and AC 220V power sources.

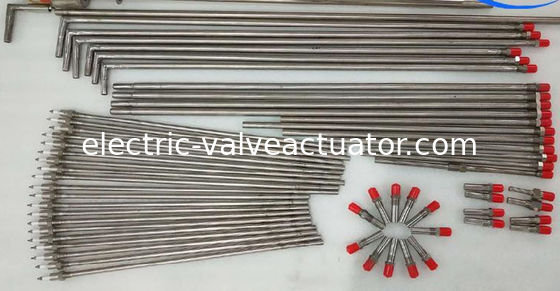

Product Models and Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table type code "l" is igniting gun length, in unit mm
② In the table "d" is igniting gun diameter, available in 14mm, 16mm, 18mm series
③ Custom design and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250

Outline and Mounting Dimensions

Drawing 3-1, XDZ-1-l/18 Standard type hard rod high energy ignition gun (L≤1000mm)

Drawing 3-2, XDZ-1-l/18 Standard type hard rod high energy ignition gun (L＞1000mm)

Drawing 3-3, XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun

Drawing 3-4, XDZ-1-l/18 K Standard type hard gun handle high energy ignition gun

Drawing 3-5, XDZ-1R-l/18 Standard type soft rod high energy ignition gun

Drawing 3-6, XDZ-3 Catalytic plug ignition gun

Drawing 3-7, XDZ-4-l/d hard rod high pressure gap ignition gun
