hard gun handle high energy ignition gun Boiler fire rod Boiler Ignition System

Name: hard gun handle high energy ignition gun Boiler fire rod Boiler Ignition System
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: XDZ-1
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	XDZ-1
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

China

Voltage:

2500V

Energy:

20J

Spark Frequence:

12-14times /S

Frame Size:

300*200*120

Thread:

M18*1.0 M18*1.5 M27*1.5

Temperature:

1300℃

Rod Dia:

Φ12、Φ16、Φ18

Packaging Details:

Wooden box packing

Supply Ability:

200

Highlight:

hard gun handle ignition system

high energy ignition gun boiler

boiler ignition system with warranty

Product Description

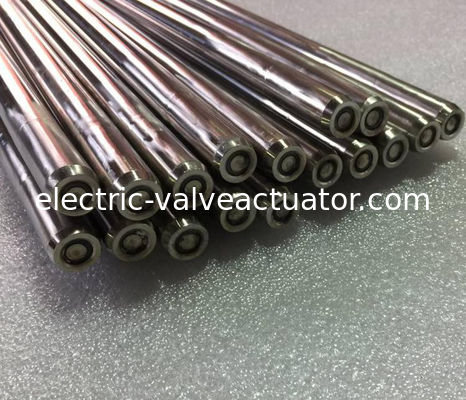

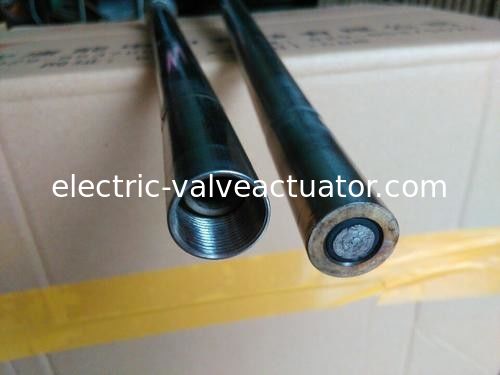

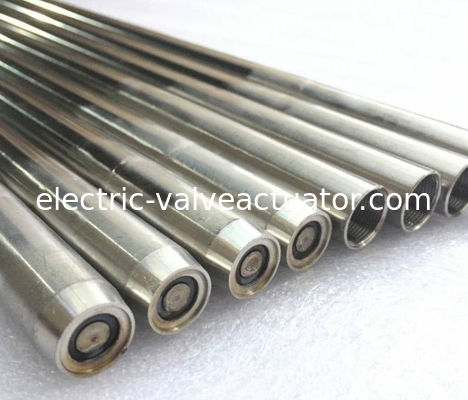

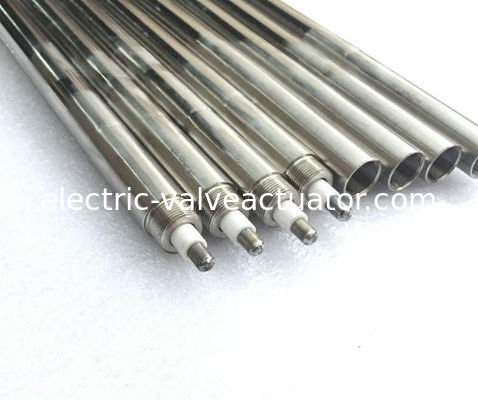

High Energy Ignition Gun System

Portable high-performance ignition system heat box for XDH high-energy ignition device assembly. Compatible with DC 12V and AC 220V power sources.

Product Models and Series

Available Product Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table type code, "l" represents igniting gun length in millimeters (mm)
② In the table, "d" represents igniting gun diameter with 14mm, 16mm, and 18mm series available
③ Custom designs and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250

Outline and Mounting Dimensions

Drawing 3-1: XDZ-1-l/18 Standard type hard rod high energy ignition gun (L≤1000mm)

Drawing 3-2: XDZ-1-l/18 Standard type hard rod high energy ignition gun (L＞1000mm)

Drawing 3-3: XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun

Drawing 3-4: XDZ-1-l/18 K Standard type hard gun handle high energy ignition gun

Drawing 3-5: XDZ-1R-l/18 Standard type soft rod high energy ignition gun

Drawing 3-6: XDZ-3 Catalytic plug ignition gun

Drawing 3-7: XDZ-4-l/d hard rod high pressure gap ignition gun
