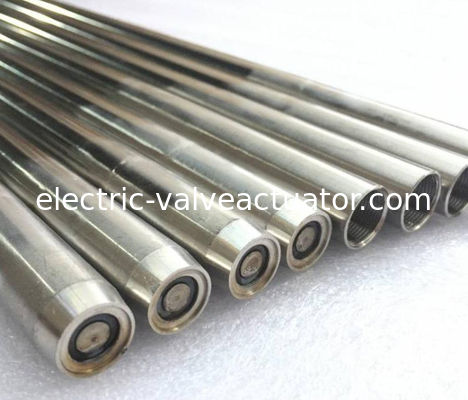

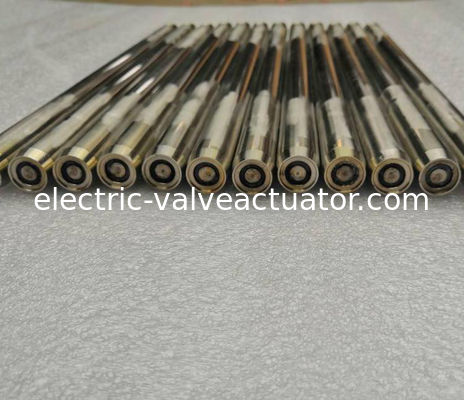

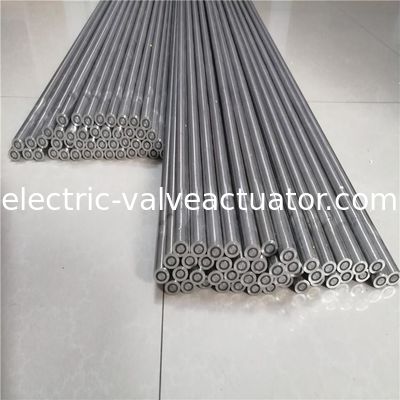

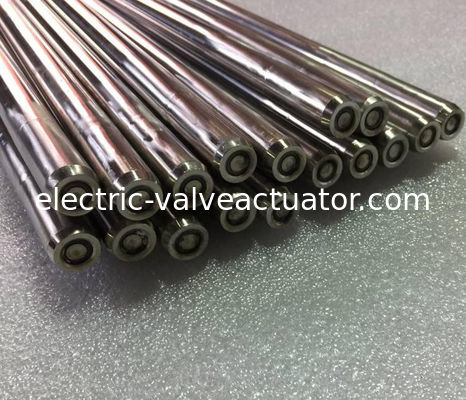

high energy ignition gun Spark Rod Φ12、Φ16、Φ18 Spark Tip High Performance Ignition System

Name: high energy ignition gun Spark Rod Φ12、Φ16、Φ18 Spark Tip High Performance Ignition System
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: XDZ-1
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	XDZ-1
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

China

Voltage:

2500V

Energy:

20J

Spark Frequence:

12-14times /S

Frame Size:

300*200*120

Thread:

M18*1.0 M18*1.5 M27*1.5

Temperature:

1300℃

Rod Dia:

Φ12、Φ16、Φ18

Packaging Details:

Wooden box packing

Supply Ability:

200

Highlight:

high energy ignition gun spark rod

spark tip ignition system with warranty

Φ18 high performance ignition system

Product Description

High Energy Ignition Gun with Spark Rod Φ12, Φ16, Φ18

Portable high performance ignition system heat box for XDH high-energy ignition device assembly. Compatible with DC 12V and AC 220V power sources.

Applications

Designed as XDH high-energy ignition device assembly for industrial ignition systems.

Product Models and Series

Standard and specialized ignition gun configurations available:

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table, code "l" represents igniting gun length in millimeters (mm)
② In the table, "d" represents igniting gun diameter with 14mm, 16mm, and 18mm series available
③ Custom designs and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250

Outline and Mounting Dimensions

Drawing 3-1: XDZ-1-l/18 Standard type hard rod high energy ignition gun (L≤1000mm)

Drawing 3-2: XDZ-1-l/18 Standard type hard rod high energy ignition gun (L＞1000mm)

Drawing 3-3: XDZ-1-l/d B Standard type hard rod explosion-proof high-energy igniting gun

Drawing 3-4: XDZ-1-l/18 K Standard type hard gun handle high energy ignition gun

Drawing 3-5: XDZ-1R-l/18 Standard type soft rod high energy ignition gun

Drawing 3-6: XDZ-3 Catalytic plug ignition gun

Drawing 3-7: XDZ-4-l/d hard rod high pressure gap ignition gun
