XDZ-1-l／18 Standard type hard rod high energy ignition gun

Name: XDZ-1-l／18 Standard type hard rod high energy ignition gun
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: XDZ-1
Price: 210.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	XDZ-1
MOQ:	1 set
Payment Terms:	T/T
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

China

Voltage:

2500V

Energy:

20J

Spark Frequence:

12-14times /S

Frame Size:

300*200*120

Ignition Rod:

M18*1.0 M18*1.5 M27*1.5

Temperature:

1300℃

Rod Dia:

Φ16 Φ18

Packaging Details:

Wooden box packing

Supply Ability:

200

Highlight:

standard hard rod ignition gun

high energy ignition gun

ignition system with warranty

Product Description

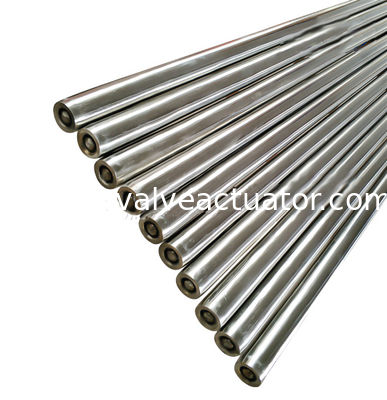

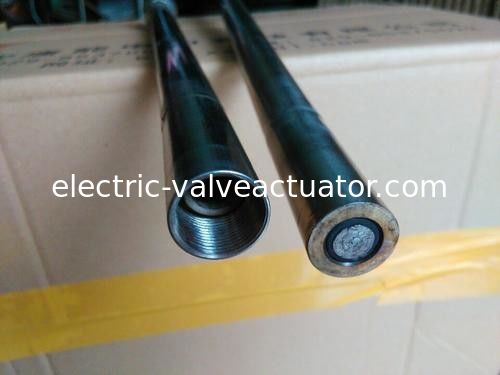

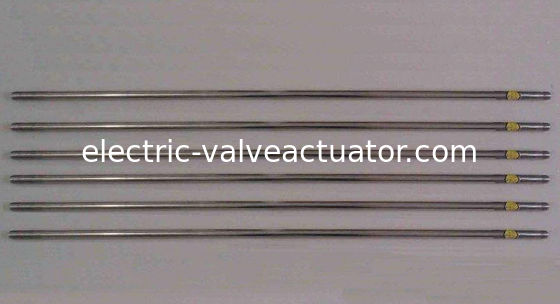

XDZ-1-l／18 Standard Type Hard Rod High Energy Ignition Gun

The XDZ-1-l／18 is a standard type hard rod high energy ignition gun designed for reliable industrial ignition applications.

Product Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Notes:

In the table type code "l" is igniting gun length, in unit mm
In the table "d" is igniting gun diameter, available in 14mm, 16mm, 18mm series
Custom design and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250
