Zhonghe ZH2072 Programmable Displacement Monitoring Instrument with LVDT Displacement Sensor and RS485 Communication Interface

Name: Zhonghe ZH2072 Programmable Displacement Monitoring Instrument with LVDT Displacement Sensor and RS485 Communication Interface
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: ZH2072
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhonghe
Model Number:	ZH2072
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

Programmable Displacement Monitoring Instrument

LVDT Displacement Sensor Displacement Control Instrument

RS485 Communication Interface Programmable Displacement Monitor

Product Description

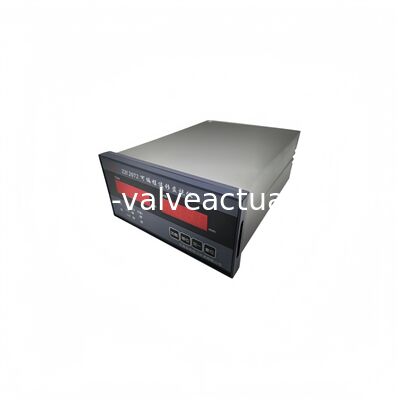

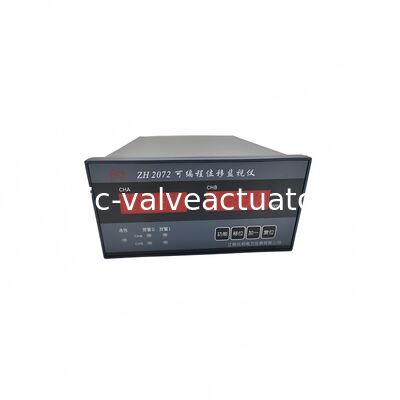

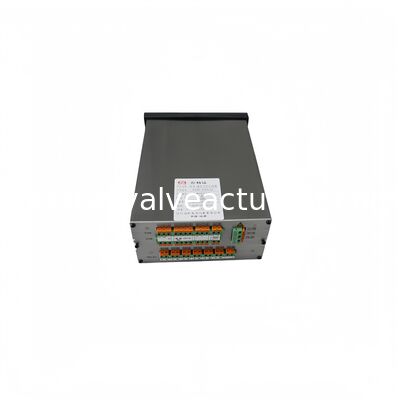

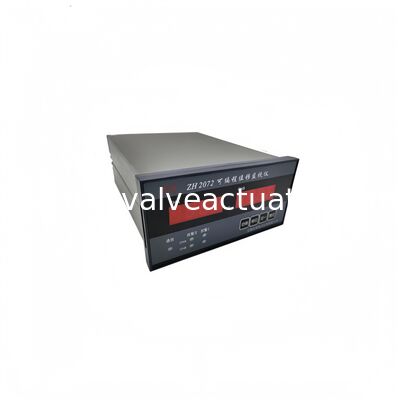

Zhonghe ZH2072 Programmable Displacement Monitoring Instrument

Product Overview

The ZH2072 programmable displacement monitor is a highly reliable monitoring and protection instrument designed for industrial applications. Equipped with a linear differential transformer displacement sensor (LVDT series), this instrument provides continuous monitoring and measurement of turbine cylinder expansion, valve opening, and oil tank level with both local indication and remote transmission capabilities.

Key Applications

This monitoring instrument works in combination with various sensor systems for comprehensive industrial monitoring:

TD-1/TDZ-1 series sensors: Monitor valve opening degree of rotating machinery (steam turbines)
TD-2 series sensors: Monitor cylinder expansion of rotating machinery (steam turbines)
UT-81 series sensors: Monitor oil level in tanks of rotating machinery and other liquid level measurements

Technical Features

Advanced ARM high-performance embedded processor for enhanced measurement performance
Dual configuration methods: Host computer software or instrument button configuration
Dual-channel operation with independent or combined channel functionality
Software correction for display and current output deviations
Configurable parameters including meter number, range, alarm settings, and output logic
Non-volatile memory for parameter retention after power loss
Power-on/power-off suppression functions with self-locking alarm output
RS485 communication interface with MODBUS-RTU protocol support

Output & Connectivity

During measurement operations, the instrument outputs current proportional to displacement and can be seamlessly integrated with DCS, PLC systems, and paperless recorders. Widely applicable in power generation, steel production, petrochemical, and metallurgical industries.
